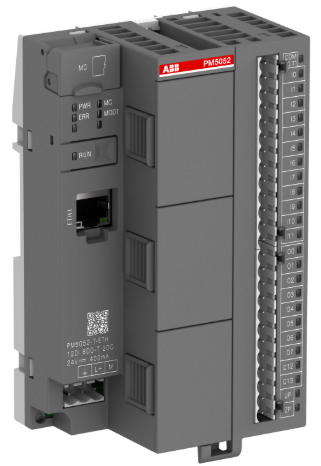

ABB PM5052-T-ETH 1SAP124000R0172 Processor module Memory 4MB

The AC500 (Standard), AC500-eCo, AC500-S and AC500-XC scalable PLC ranges provide

solutions for small, medium and high-end applications. Our AC500 platform offers different

performance levels and is the ideal choice for high availability, extreme environments or safety

solutions. Our AC500 PLC platform offers interoperability and compatibility in hardware and

software from compact PLCs up to high-end and safety PLCs.

Due to the flexible combinations of AC500 devices and components, AC500 PLCs can be used

for controlling a wide variety of applications to fulfill your automation needs.

Both the AC500 control system and other components in the vicinity are operated with dan

gerous touch voltages. Touching live components can lead to serious health implications or

even death.

To avoid such risks and the occurrence of property damage, persons involved in the installation,

commissioning and maintenance must have relevant knowledge about the following:

● Automation technology

● Handling of hazardous voltages

● Application of relevant standards and regulations, accident prevention regulations and reg

ulations on special environmental conditions (e.g., hazardous areas due to explosive sub

stances, heavy soiling or corrosive influences).

The AC500-S safety user manual must be read and understood before using the safety configu

ration and programming tools of Automation Builder/PS501 Control Builder Plus. Only qualified

personnel are permitted to work with AC500-S safety PLCs.

General information

The examples and diagrams in this manual are included solely for illustrative purposes.

Because of the many variants and requirements associated with any particular installation, ABB

cannot assume responsibility or liability for actual use based on the examples and diagrams.

The PLC was developed according to the relevant standards. Any module-specific measures

are described in the individual descriptions of the modules.

SST/Woodhead 5136-DNP-104 Interface Module DeviceNet I/O Driver

SST/Woodhead Profibus Network Interface PB3-ISA-e GEB

Woodhead SST-IBS-CLX, Interbus Scanner Module, G4 Master.

AMAT AMAT-DNP-CPCI- 1 DEVICENET PRO PCB CARD SST WOODHEAD

WOODHEAD / MOLEX SST-DN3-PCU-2E PCI DEVICENET v 1.4.0

Woodhead SST PB3-PCU-E V1.7.1 PB3-PCI-e Communication Card

SST WOODHEAD CANADA 490-1655 Printed Circuit Board Card

SST-PFB-SLC Woodhead Profibus Scanner Module

SST Woodhead 5136-DNP-PCM-S T PCMCIA Devicenet Interface

Woodhead SST-CCS-PCU CC-Link Communications Card CCS-PCU1 U40

Woodhead 3095-002 Super-Safeway Outlet Box 3 Phase Cord Set 20AMP 120/208VAC
