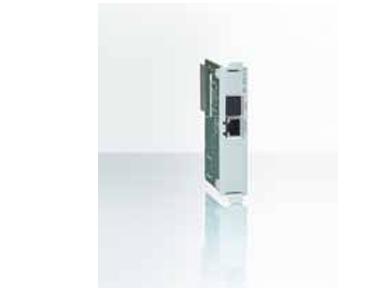

KEBA KeConnect NX 252/A Ethernet option module

Product features

• Ethernet interface

• 10/100 Mbit/s transmission rate

Short description

The NX 252/A is an Ethernet PCI module that is directly plugged into a CP-26x-CPU module, thereby expanding this

module with an additional RJ45 Ethernet interface. The transmission rate is 10/100 Mbit/s; the states are indicated by

means of transmission and reception LEDs. The NX 252/A is equipped with an electronic parameter chip.

Ethernet interface

Ethernet interface 10/100 Mbit/s LAN

Galvanic isolation Yes, signal lines

Connection Modular plug, 8-pin (RJ45 plug)

Interface to CPU module:

Type of interface PCI

Power consumption 2 W, supply via CPU module

Module detection Yes (no type detection)

Mechanical data

Structure PCI plug-in module, front plate mounted on PCB; no housing

Protection rating IP20 if the module is plugged into the CPU module

Weight 65 g

Environmental conditions

Operating temperature +5 °C … +55 °C

Storage temperature-40 °C … +70 °C

Relative air humidity 10 % to 95 % (non-condensing)

Vibration resistance / shock resistance Acc. to EN 61131-2
