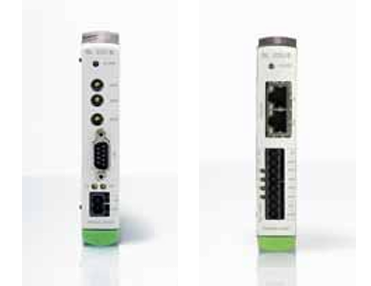

KEBA KeConnect BL 210/B, BL 27x/x Bus coupler modules

From:KEBA | author:Mr.Chen | Time :2025-09-19 | 15 view: | Share:

Product features

• CAN bus coupler modules (BL 210/B)

• EtherCAT bus coupler modules for the connection of remote

I/O modules (BL 270/A, BL 270/B, BL 272/A, BL 272/B)

• Additionally integrated digital inputs (BL 27x/A) or

outputs (BL 27x/B)

• Support of remote modules for serial interfaces

and fieldbus interfaces (BL 272/A, BL 272/B)

• Electronic parameter chip

Short description

The BL 210/B (CANopen) and the BL 27x/x series are bus coupler modules that, in combination with I/O modules,

enable the decentralization and transmission from module islands.

The BL 27x/x series is used as a bus coupler between EtherCAT and K-bus. Modules of the system can thereby be ope

rated as remote I/O islands. The BL 27x/x can be connected to a control via EtherCAT and is thereby made an EtherCAT

slave. Two variants of the BL27x series are available:- With four additional digital inputs (BL 27x/A)- With four additional digital outputs (BL 27x/B)

As a special feature, the BL 272/x enables the connection of interface modules for fieldbuses (FM 200/A) and serial in

terfaces (SM 210/A, SM 220/A, SM 230/A). This enables the operation of such interfaces remotely from CPU modules.

This feature is also referred to as “bus via bus communication”.

The status of the module is indicated via a status LED. The LEDs on the RJ45 sockets provide information about the

link and activity status of the respective network connection. Each digital input/output also has a status display (active/

not active).

These modules are attached directly to a CPU module or can be operated with all KEBA controls by means of bus

couplers.

CAN interface (only BL 210/B)

Number 1

Data transmission rate Adjustable by means of rotary selector switch: 125 kbit/s to 1 Mbit/s

Terminating resistor Yes, can be bridged in plug

Galvanic isolation No

Connection DSUB plug, 9-pin

EtherCAT slave BL 27x/x

Field bus EtherCAT

Baudrate of EtherCAT slave 100 Mbit/s

Digital inputs (only BL 27x/A)

Number / type of inputs 4x type 1 (acc. to EN 61131-2)

Voltage range for "1" 15 V ≤ UH ≤ 30 V

Voltage range for "0"-3 V ≤ UL ≤ 5 V

Status display Green LED

Cycle time 1 ms

Usable as interrupt inputs Yes

Response time of the K-bus interrupt 100 μs with 5 kHz input filter

Galvanic isolation No

Debouncing Configurable 1 ms, 100 ms

Digital outputs (only BL 27x/B)

Number of outputs 4

Nominal voltage 24 V DC

Processing time 1 ms

Nominal current of digital outputs 0.5 A at 100  % simultaneity per group

Galvanic isolation No

Status display Orange LED

Protection facility Short-circuit protection

Max. inductive load 100 mJ at 1 Hz
