KEBA KeConnect FM 200/A, FX 200/A CAN communication modules

From:KEBA | author:Mr.Chen | Time :2025-09-19 | 17 view: | Share:

Product features

• Up to 2x CANopen interfaces

• High interference immunity

• Transmission rate up to 1 Mbit/s

• Electronic parameter chip

Short description

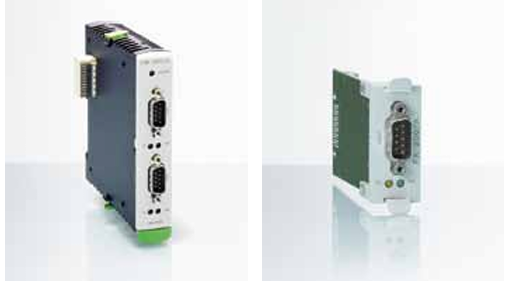

The FM 200/A and FX 200/A are CANopen interface modules of the KeConnect C2 product line.

Depending on the line length, the interface operates with a maximum transmission rate of 1 Mbit/s. The connection is

made via a 9-pin D-sub plug. The states of the interface are indicated by means of transmission and reception LEDs.

The FM 200/A is attached directly to a CPU module or can be operated with all KEBA controls by means of a bus coupler.

The FX 200/A is inserted directly into the central module of the KeControl C2 product line.

CAN interface

FM 200/A FX 200/A

Number 2 1

Data transmission rate Can be set via software (125 kbit/s to 1 Mbit/s)

Terminating resistor Yes, can be bridged in plug

Galvanic isolation No

Connection DSUB 9-pin Male connector

Dimensions, weight (only FM 200/A)

Height 120 mm

Width 22.5 mm front plate / 32.5 mm incl. K-bus plug

Depth 100 mm

Weight 140 g

Mechanical data (only FX 200/A)

Structure Front plate mounted on PCB; no housing

Protection rating IP20 if the module is plugged into the CPU module

Weight 27 g

Environmental conditions

Operating temperature +5 °C … +55 °C

Storage temperature-40 °C … +70 °C

Relative air humidity 10 % to 95 % (non-condensing)

Vibration resistance / shock resistance Acc. to EN 61131-2

General

FM 200/A FX 200/A

Type of interface K-bus interface Option-module interface

Supply voltage from K-bus 24 V DC, 5 V

Protection class III acc. to EN 61131-2

Displays on the front plate Status LED

Max. number of modules operable on a CP

module 2 1

Max. power consumption K-bus 24 V 0 W

Max. power consumption K-bus 5 V 0.8 W 5 V

Max. power consumption K-bus 3.3 V

Module detection Yes (no type detection)
