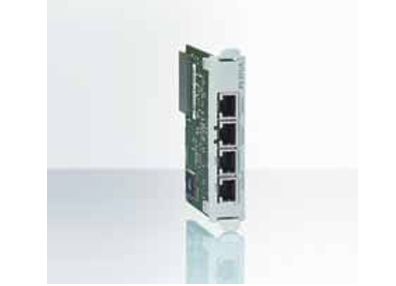

KEBA KeConnect FX 271/B Sercos III communication module

From:KEBA | author:Mr.Chen | Time :2025-09-19 | 15 view: | Share:

Product features

• Sercos III master (FX 271/B)

• High interference immunity

• Electronic parameter chip

Short description

The FX 271/B is a Sercos III master fieldbus option module.

The option module is operated directly in a PCI slot of a

CP 24x/x or CP 26x/x of the KeControl C2 product line.

In addition, the FX 271/B is equipped with two Ethernet inter faces.

Sercos III is an Ethernet-based bus that was developed both for drive technology

as well as for I/O operation as a digital interface.

This standard enables flexible, fast and precise control and coordination of machine movements.

The Ethernet technology enables continuous communication

between a control or service station and the respective slaves.

Sercos III interface

Number / data transmission rate 1x 100 Mbit/s

Galvanic isolation Yes, signal lines

Connection Modular plug, 8-pin (RJ45 connector

Ethernet interface

Number / data transmission rate 2x 100 Mbit/s

Galvanic isolation Yes, signal lines

Connection Modular plug, 8-pin (RJ45 connector

Mechanical data

Structure Front plate mounted on PCB; no housing

Protection rating IP20 if the module is plugged into the CPU module

Weight 83 g

Environmental conditions

Operating temperature +5 °C … +55 °C

Storage temperature-40 °C … +70 °C

Relative air humidity 10 % to 95 % (non-condensing)

Vibration resistance / shock resistance Acc. to EN 61131-2

General

Type of interface PCI

Supply voltage 5 V DC and 3.3 V DC

Protection class III acc. to EN 61131-2

Displays on the front plate Activity LED

Max. operable on a CPU module 1x

Max. power consumption K-bus 5 V 2 W

Max. power consumption K-bus 3.3 V 2.6 W

Module detection YES (no type detection)
