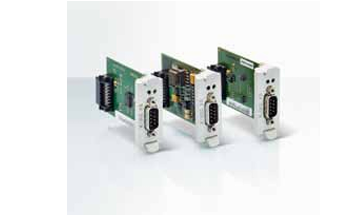

KEBA KeConnect SX 2x0/A Serial option module

Product features

• Serial interface RS232.

RS 422/485-A or Current Loop

• Full-duplex operation

• High interference immunity

Short description

Serial interface modules of the SX 2x0/A series are used as an option directly in a CP 23x or in a CP 26x CPU module.

They enable the connection of an RS 232. RS 422/485-A or Current Loop serial interface. This interface operates in full

duplex mode with a maximum transmission rate of 115.000 baud.

The Current Loop interface (SM 220/A) functions both for transmitter as well as for the receiver in active or passive ope

ration. The operating mode is switched on the side on the PCB via DIP switches.

Interfaces to CPU module

SX 210/A SX 220/A SX 230/A

Type of interface Option-module interface

Power consumption 0.2 W; supply

via CPU module

1.0 W; supply

via CPU module

0.1 W; supply

via CPU module

Module detection Yes (no type detection)

Mechanical data

Structure Front plate mounted directly on PCB; without housing

Protection rating IP20 if the module is plugged into the CPU module

Weight 31 g

Environmental conditions

Operating temperature +5 °C … +55 °C

Storage temperature-40 °C … +70 °C

Relative air humidity 10 % to 95 % (non-condensing)

Vibration resistance / shock

resistance Acc. to EN 61131-2
