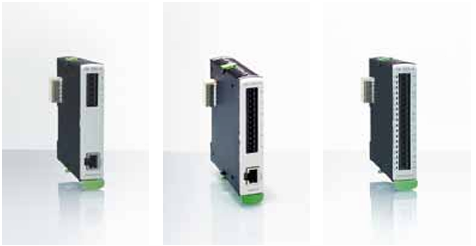

KEBA KeConnect TM 2x0/A, TM225/A Temperature measurement modules

From:KEBA | author:Mr.Chen | Time :2025-09-19 | 13 view: | Share:

Product features

• Thermoelement type J, K, L

(TM 220/A, TM 240/A)

• For PT100 sensors

(TM 225/A)

• Internal and external cold junction compensation

• High measurement precision

• Sensor failure detection

• Electronic parameter chip

Short description

The TM 2xx/A series consists of temperature measurement modules that can be directly attached to CPU modules and

operated with all product lines of the KEBA control system by means of bus couplers.

TM 220/A, TM 240/A

Analog input modules TM 220/A and TM 240/A enable the direct connection of thermoelements (2-conductor tech

nique). The calibration and linearization of the temperature values takes place via a microcontroller. A sensor failure,

should it occur, is reported to the higher-level central module and can be evaluated in the application.

Two operating modes are supported:

• Display of the actually measured temperature (standard mode)

• Display of the measured voltage in μV

Cold junction compensation can occur via internal temperature measurement at the terminals of the module or optionally

with the aid of external sensor TE 220/A (external terminal temperature compensation).

TM 225/A

Analog input module TM 225/A enables the direct connection of PT100 resistor sensors. Up to four temperature sensors

can be operated with 2- or 4-conductor technique. With the 4-conductor technique, the interference associated with the

conductor lengths is compensated for and the precision of the measurement thereby increased.
