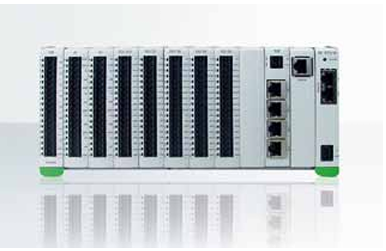

KEBA KeConnect IM 270/W Compact modules

Product features

• Cost- and space-optimized compact module,

especially well suited for plastic machines

• Supports the “fast control” concept

• Functions for changeover point recognition

• Connection via high-performance EtherCAT connection

• Direct expandability by means of KeConnect C2 modules

• Extensive diagnostic options

Short description

The IM 270/W is a cost- and space-saving compact module. It combines the typical I/O design for plastic injection

molding machines in one module and offers functions for changeover point detection. In addition to application in the

plastics sector, it can also be used in other areas.

The IM 270/W supports the “fast control” concept. Innovative EtherCAT communication between the compact module

and the CPU module is used here to minimize dead times and thereby greatly reduce reaction times. This increases the

performance of the machine considerably.

Depending on the type of inputs and outputs, various diagnostic possibilities are available, such as the detection of

sensor failures or short circuits.

The IM 270/W is connected to the CPU module via EtherCAT. To adapt the I/O configuration to the application,

KeConnect C2 modules can be attached at the side directly via the K-bus.

Digital inputs

Number of inputs 32

Input type Type 1 (acc. to EN 61131-2)

Voltage range for "1" 15 V ≤ U ≤ 30 V

Voltage range for "0"-3 V ≤ U ≤ 5 V

Status display Green LED

Min. update cycle 200 μs

Galvanic isolation No

Debouncing Configurable (via software)

Digital outputs 0.5 A

Number of outputs 16 (DO0 - DO15)

(2 groups of 8 outputs with their own supply)

Type Semiconductor output

Nominal voltage 24 V DC

Nominal current 0.5 A at 100 % simultaneity per group

Status display Orange LED (on the load side)

Galvanic isolation of the output groups No

Galvanic isolation of the control electronics No

Inductive load (energy) Max. 100 mJ at 0.2 Hz

Overload-proof Yes

Permanently short-circuit proof Yes

Short-circuit diagnosis Yes

Protected against polarity reversal No, defects possible

Digital outputs 2 A

Number of outputs 24 (DO16-DO39)

(3 groups of 8 outputs with their own supply)

Type Semiconductor output

Nominal voltage 24 V DC

Nominal current 2 A at 50 % simultaneity per group

Status display Orange LED (on the load side)

Galvanic isolation of the output groups Yes

Galvanic isolation of the control electronics Yes; electric strength 500 V AC

Inductive load (energy) Max. 1 J at 0.2 Hz

Overload-proof No

Permanently short-circuit proof Yes

Short-circuit diagnosis Yes

Protected against polarity reversal Yes
