ABB S750 series End of Life Instruction

End of Life Instruction

Decommissioning instructions available to enable responsible

recycling or disposal

Purpose and Basic Description

This product family is in the scope of European Union directive 2012/19/EU on Waste Electri

cal and Electronic Equipment (WEEE). The product family must be disposed according to the

legislation of the country. This the end-of-life instructions is intended for use by customers

and recycling companies which outline the responsible recycling or disposal method of the

ABB product.

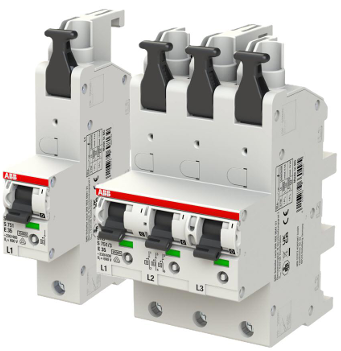

Selective main circuit-breakers of the S 750 series are SMCBs based on DIN VDE 0641-21 with

voltage-independent operating principle. This means that they do not rely on a control circuit

to make or break contact (SHU) and are therefore particularly suitable for use in energy distri

bution systems with maximum availability requirements. They offer total selectivity to down

stream MCBs and outstanding selectivity to upstream protective devices due to unique cur

rent limiting selectivity.

More than 1 pole product:

In case of more than 1 pole, first, the toggle lock(1), the connecting part(2) and the two marked

rivets(3) should be removed to split the product into simple poles.

1 pole product:

On that point, all single poles will be dismantling on the same way.

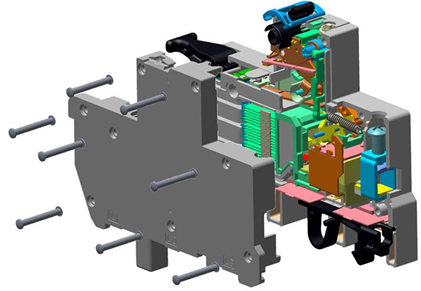

Firstly, remove the rivets (only 5 rivets left in products of more than 1 pole), then you will be

able to take out the cover and access to all the internal parts.
