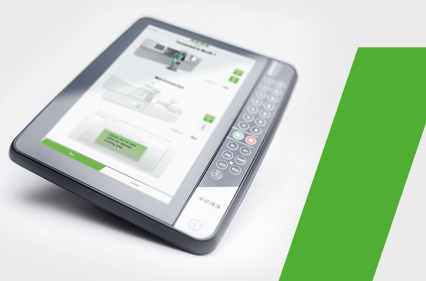

KEBA KeTop T150/155 Safe Wireless Mobile IPC HMIs

Wireless Mobile IPC HMI with integrated safety

Combine your HMIs - PLC, Robot, and ERP system along with safety into

one device for simple and mobile operator control that

increases productivity and safety.

KeTop T150/155 Safe Wireless Mobile IPC HMIs

With the dramatic increase in robotics and safe collaborative

automation systems customers want one HMI that integrates

machine, motion, robotics, and safety.

//  Simplifies and increases safety of the operator‘s control of the

complete automation cell

//  Runs Windows 10 or HTML5 HMI software

//  Rugged IP65 rating, drop and vibration tested, globally trusted

HMI in the robotics industry

//  Projected Capacitive Multi Touch screen (PCT) for fast respon

se and gloved operation

//  Fast response membrane keypad with communication to PLC

or Robot for accurate control

//  E-Stop and safety enable provides safe operation with robots,

machine motion, and safety monitored areas

Safety certified wireless technology SIL3 Cat4 PLe

The need for mobile HMIs has expanded even further into large

area robotics, production lines, and intralogistics. KEBA is the

first to have a solution with robust wireless safety technology,

testing, and certification.

//  Bluetooth 4.2 Technology for proximity or remote safety pairing

HMI to machine base stations

//  Safety devices when paired to base station are enabled with a

range of up to 20 meters

//  Non safety data is communicated over WiFi whether safety

pairing is active or not. For example, HMI software data.

//   High speed safety response times of less than 100ms

//   Multiple base stations and HMIs can operate on the same

network to ensure safe operations in local areas

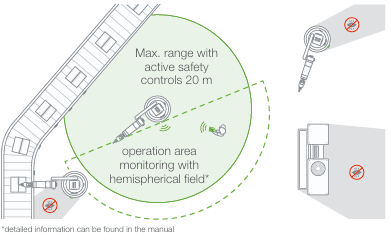

//   Optional: Configurable operation area monitoring ensures

the operator stays in range and provides warnings if operator

moves outside the area before operations are stopped
