Bently Nevada ORBIT 60 SERIES Dynamic Input Modules Description

From:Bently | author:Mr.Chen | Time :2025-09-15 | 129 view: | Share:

Description

The primary purpose of the Dynamic Input module is to digitize the sensor signal at

a rate that completely encompasses the signal content and provides transducer power for various sensors.

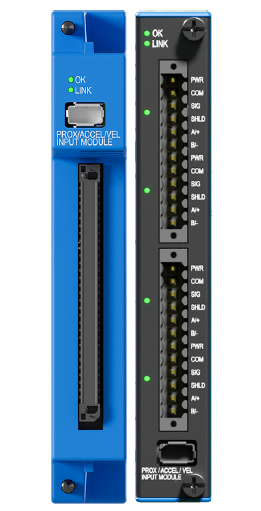

The Orbit 60 Series Dynamic Input modules are a set of 4-channel input modules available

in both negative and positive dynamic input options. The inputs are also used for speed

or Keyphasor signals All dynamic input modules that support speed or Keyphasor signals

can be configured to have Primary and Backup Speed Source support,

to allow for speed redundancy functionality.

The module supports backup speed source functionality.

When configured, if the primary speed source enters an invalid state,

a backup speed channel will be utilized to provide a speed reference for

configured synchronous measurements. Compensations for differences in shaft

speed and phase reference timings can be configured to maintain measurement

accuracy upon transitioning to backup speed sources.

The Orbit 60 dynamic input modules are designed for use on a broad range of machine

trains or individual casings where the sensor point count fits the monitor’s channel

count and where advanced signal processing is desired.

The modules are optimized for intensive signal processing required on complex

machinery such as gearboxes, planetary gearboxes, reciprocating compressors,

and roller element bearing (REB) machines, as well as offering advanced measurement

capabilities on conventional monitoring methods such as radial vibration,

thrust position, piston rod monitoring, and casing absolute vibration.

Negative Transducer Input Modules

The following cards work with negative-voltage external sensors offering four variants:

• PAV Negative Dynamic Sampler (Prox, Accel, Velom)

• PAS Negative Dynamic Sampler (Prox, Accel, Seismic)

• PAA Negative Dynamic Sampler (Prox, Accel, Aero)

• PAD Negative Dynamic Sampler (Prox, Accel, DC LVDT)

• KPH High Speed Keyphasor (Prox, Accel, Magnetic Pickup)
