KEBA KeConnect DO 242/B, DO 272/A Digital output modules

From:KEBA | author:Mr.Chen | Time :2025-09-19 | 12 view: | Share:

Product features

• 8 or 14 digital outputs

• Short-circuit detection and diagnosis

• Permanently short-circuit proof

• Current load capacity 2 A at 50 % simultaneity

• Fast shutdown function for inductive loads

• Electronic parameter chip

Short description

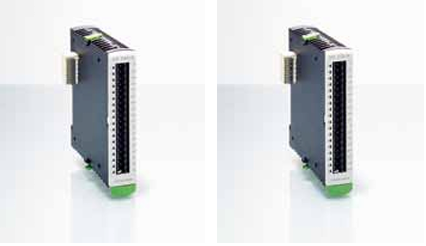

Digital output modules DO 242/B and DO 272/A enable the connection of up to 14 digital outputs. The digital outputs

switch the 24 V DC control signals of a central module galvanically isolated from the connected actuators and are desi

gned for a load of up to 2 A at 50 % simultaneity.

The modules are equipped with a fast shutdown function that enables a rapid shutdown of inductive loads, e.g., hydrau

lic valves. Machine processes can thereby be accelerated and productivity increased.

The operational safety is ensured by the permanent short-circuit protection of the outputs. Should a short circuit occur,

it is detected and reported to the control module.

These modules are attached directly to a CPU module or can be operated with all KEBA controls by means of bus

couplers.

Digital outputs

DO 242/B DO 272/A

Number of outputs 8 14

Nominal voltage 24 V DC

Processing time 1 ms

Nominal current of digital outputs 2 A at 50 % simultaneity

Galvanic isolation Yes

Status display Orange LED

Protection facility Short-circuit protection

Max. inductive load 1 J at max 0.2 HzC

Dimensions, weight

Height 120 mm

Width 22.5 mm front plate / 32.5 mm incl. plug

Depth 100 mm

Weight 130 g

Environmental conditions

Operating temperature +5 °C … +55 °C

Storage temperature-40 °C … +70 °C

Relative air humidity 10 % to 95 % (non-condensing)

Vibration resistance / shock resistance Acc. to EN 61131-2

General

DO 242/B DO 272/A

Supply voltage 24 V DC from front (nominal voltage tolerance: 19.2 V … 30 V, acc. to EN 61131-2)

24 V DC from K-bus, 5 V DC from K-bus

Overvoltage category II

Protection class III acc. to EN 61131-2

Addressing on K-bus Via 16-digit address switch, on the side

Type of terminals Open - pitch 5.08 mm

Displays on the front plate 16 signal status LEDs

Max. power consumption K-bus 24 V 2.1 W 2.1 W

Max. power consumption K-bus 5 V 0.4 W 0.4 W
