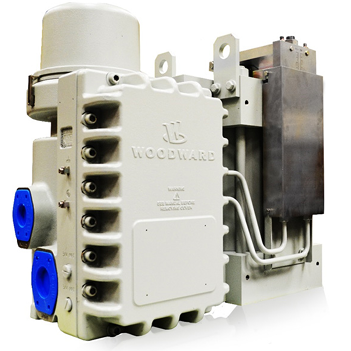

Woodward V45TV-2510-FUEXM-X-S-X 9907-1637 Industrial Turbine Actuator

Limitação de corrente de partida

O DVP5000 e DVP10000 têm limitação de corrente de partida incorporada ao projeto. A energia para a

CPU ocorre rapidamente após a aplicação, mas os capacitores de armazenamento interno demoram cerca

de 6 segundos para carregar completamente. A ativação do inversor é impedida pelo software até o tempo

de atividade inicial ter expirado. Esta sequência de ativação ocorre depois que a AMBAS potências de

entrada são aplicadas e a entrada EXTERNAL SHUTDOWN é energizada.

For redundant operation, the control can use any combination of power supplies.

The power supplies can only be installed into slots PS1 (power supply #1) and PS2 (power supply #2). If

redundant power supplies are not needed, blanking plates must be installed in the slots not being used.

Branch circuit fuses, circuit breakers, and wiring must meet appropriate codes and authorities having

jurisdiction for the specific country (CE, UL, etc.). See Table 4-3 for maximum recommended fuse or

breaker ratings. Do not connect more than one main power supply to any one fuse or circuit breaker. Use

only the wire sizes specified in Table 4-3. which meet local code requirements. Time delay fuses or circuit

breakers must be used to prevent nuisance trips.

In the event that on supply needs to be replaced, the recommended method for changing

Power Modules is with the power off (to the module being removed and the module being inserted).

The system will tolerate this “cold swap” method without failure.
