KEBA Controlled energy storage system

The KeDrive D3 drive system can be expanded with a controlled energy storage system.

Essentially, the system consists of an energy manager and an energy storage device.

Energy storage systems are used in a variety of applications. Whether for the storage

of energy generated regeneratively in the drive system or for buffering and the provision

of energy in peak load situations.

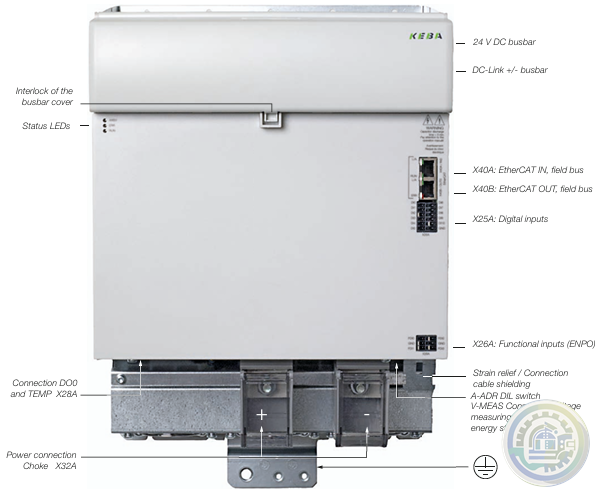

The energy manager KeDrive D3-EM, as a dynamically regulated step-down converter,

makes use of a large DC link voltage range.

In this way the system can store and deliver more energy compared to storage modules

of the same capacity directly integrated into the DC link.

The energy storage system can be combined with both passive and active supply units.

The requirements specify the selection of the supply.

Regulated DC link voltage for clearly international drive design

Independent of worldwide mains voltages

Optimised energy storage device in the DC link

Reduction of mains distortion (THD) and reactive power caused by passive mains rectification

Saving in mains connection costs due to limitation of the peak load consumption from the supply

system

Controlled energy storage device for dynamic application

Take advantage of KEBA expertise from research and applications for your bespoke "smart DC

system" with the KEBA energy storage system.
