KEBA KeSafe C5 Safety Technology

SCP 501 Safety Controller & SDM 570 Extension Module

The KeSafe C5. a modular safety solution consisting of

hardware and software, was developed for the optimal

realization of safety applications in serial machines and plant

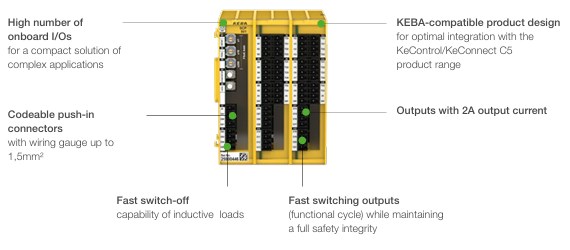

engineering. The pioneer of the KeSafe C5 safety system is

the SCP 501 CPU module with a high number of onboard

I/Os, open architecture, and compact size, perfectly

designed to execute complex safety applications, process

safe sensor signals, and control safe actuators. For in

creased  flexibility, the system can be expanded using the

SDM 570 extension module.

Sophisticated solution for hybrid output control

KEBA hardware-based approach for controlling safe outputs

via the functional controller results in excellent repeat accura

cy and cost saving potential. The hybrid output control  offers

the possibility to control the outputs both from the safety

application and the functional control (AND logic).

Semi-automatable safety application

development

KeStudio SafeEditNG software, specially developed for the

KeSafe C5 range, is a user-friendly drag-and-drop  engineering

tool for implementing and diagnosis of safety applications.

Characterized by a high level of automation in the configura

tion of safety applications, it features, among others:

• Flexible assignment of physical hardware to virtual

application I/Os

• Export, adaption and import of safety applications on

AML-based data files

•  Adaption of safety application configurations via

customer engineering tools (SAP, E-Plan, etc.)

• Lower verification efforts thanks to user-defined

checksums, allowing flexible assignment of application

data to checksums.

The whole is greater than the sum of its parts

As often highlighted at KEBA, getting a complete solution

from one source brings numerous benefits in performance,

optimal data exchange, fast diagnostics, and maintenance.

Therefore, KeSafe C5 SCP 501 controller and SDM 570

extension module should be combined with KeContol C5

controllers, KeConnect C5 I/Os, and for the best results,

also with KeDrive drives.
