TMEIC High-voltage motors 21-L series

21-L series Combining over 100 years experience with

innovative new technology makes the 21-L series the right

choice for the demanding needs of today's industry.

Superior electrical performance

benefits, unsurpassed reliability :

The 21-L series three-phase high-voltage motors are at the

leading edge of motor technology.

- Designs up to 18.500 KW (25.000HP)

- Wide variety of enclosures

- Rugged, high quality fabricated steel construction

- Frame sizes from 450mm-900mm

- Designed to meet worldwide standards

Features / Benefits :

Excellent electrical performance

- Higher efficiency

- Higher power factor

- Superior starting characteristics

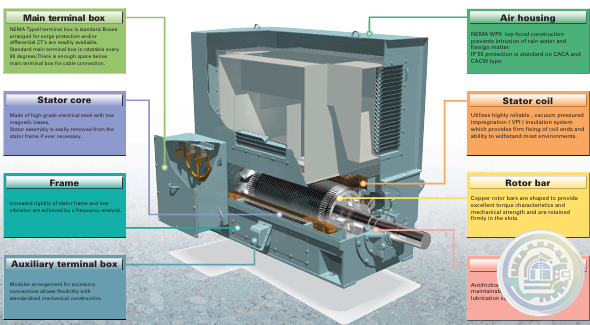

Unique Modular Construction

- Easy motor enclosure conversion

ODP, WP1. WP2. CACA (TEAAC), CACW (TEWAC)

New compact design derived through

- Extensive electrical magnetic field analysis

- Heat transfer analysis

- Improved ventilation

Lower noise & lower vibration

- Advanced techniques in core/frame construction

Advanced VPI insulation system

- Higher surge withstanding capability

Excellent Quality Control

- Low operating and maintenance costs

- High reliability

- Extended re

-greasing intervals

Design for all applications and industries

Compatible on Variable Frequency Drive applications

Fabricated copper bar rotor construction
