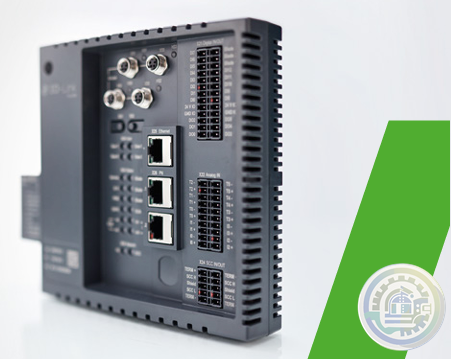

KEBA PitchOne (CAM2) Pitch Servo Drives

CAM2 contains all the components for communication

with the surrounding environment as well as features

for user programming and the storage and processing

of diagnostic data. The module is the central communi-

cation interface to the Drive Module (DRM).

The following functions are available:

// Direct hardware support for the real-time field bus PROFINET.

// Interfaces for service and diagnostics (non-real-time

Ethernet) and for Safe Cross Communication (SCC)

between the three servocontrollers in a pitch system.

// Onboard flash memory for central firmware handling as well

as the non-volatile storage of process and diagnostic data

// User programming (CODESYS) to customize the system to

the specific customer requirements.

// Digital and analogue interfaces (not for safety) for the inter-

action with the pitch system. These include PLC-compatible

digital inputs and outputs, analogue current inputs, as well

as the temperature measurement inputs.

// IO-Link master for the connection of intelligent IO-Link

sensors and actuators.

// HMI interfaces via buttons, switches and LEDs.

To install the CAM in the drive module

· Disconnect the pitch servocontroller from all supply

voltages

· Insert the CAM in the drive module (1)

· Secure the CAM using the securing screw (2)

· Switch on again the supply voltages
