KEBA KeSafe D3-SDC Safe motion monitoring in the drive

The KeSafe D3-SDC servo drive is the basis for a comprehensive safety solution.

It provides safe drive functions within the KeDrive D3 platform and monitors

movements in accordance with current standards and guidelines. With optional

SafeMotion functions, the D3-SDC is ideally suited for safety-critical machine axes.

Users benefit from a fast response time, high reliability, and seamless integration

into existing machine architectures.

Pre-certified solution

The KeSafe D3-SDC servo drive fulfills the safety monitoring functions in accordance

with ISO 61800-5-2. This reduces the overall certification effort for the machine.

Key features

KeSafe D3-SDC is suitable for simple logical links and safe single-axis functions

 as well as complex safety requirements in robot applications.

• Safe integration into the system

KeSafe D3-SDC enables safe communication with a master safety control – either

as an FSoE© subdevice or PROFIsafe F device.

• Programming & parameterization

With the KeStudio SafetyManager software tool, safety applications can be graphically

created, diagnosed, and validated.

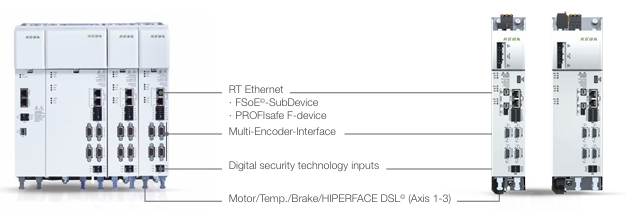

• Hardware components

The KeSafe D3-SDC drive controller combines safety logic and motion monitoring in a

single device and enables easy expandability.

Maximum integration and flexibility

The KeSafe D3-SDC is part of the KeSafe automation sys-tem. It offers seamless

compatibility within the Kemro X auto- mation platform. Whether with the safety

control SCP 501 for general mechanical engineering or the KeDrive D3-DU for robotics,

both approaches can be integrated optimally depending on requirements.

Your freedom – your advantage

In the Kemro  X system, which is also open to third-party controllers, all components

can be flexibly combined. This creates a consistent safety concept that fits perfectly

into any machine architecture – without compromise.
