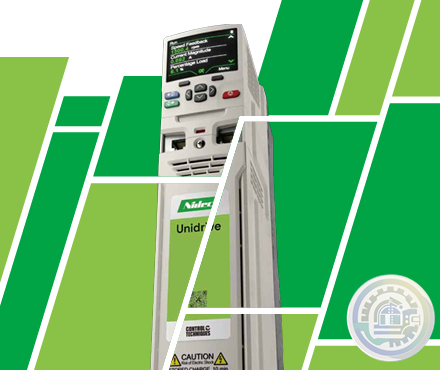

Nidec Unidrive M608 Industrial general-purpose drive

Advanced Motor Control

0.75-110 kW (HEAVY DUTY) 400 V | 690 V

Motor Controls:

Asynchronous motors  (Open-loop, RFC-A Sensorless, RFC-A)

Synchronous reluctance motors (Open-loop)

Encoder Support

AB (Incremental)

Resolver (2 to 30 Poles)

SSI (Absolute)

Key Benefits:

• Built-in position and velocity feedback interface

• Enables multi-motor load balancing

• Built in AMC function for relative position, absolute position,

and position profiles

• On-boardPLC

• On-board Ethernet/PROFINET multi protocol

• Supports three expansion cards

Features and Specification

Performance

Current loop update time: 62 µs

Heavy load peak rating: 200 % (3 s)

Maximum output frequency: 599 Hz (Open Loop), 550 Hz (RFC-A)

Switching frequency range: 2. 3. 4. 6. 8. 12 and 16 kHz (default 3 kHz)

High performance current controller

On-board intelligence

Programmable Logic Control (PLC)

Real-time tasks

Digital Lock Control

Advanced Motion Controller

On-board communication

Mechanical features

EtherNet (2 switching ports): EtherNet/IP, Modbus TCP/IP, RTMoE and PROFINET RT

Tile mounting on sizes 3. 4. 5

Unidrive SP compatible mechanical footprint

Common DC bus connections
