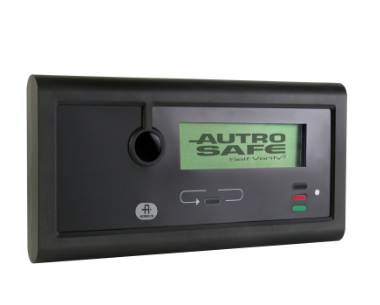

Autronica Information loop panel BV-110

Features

• User-friendly display and operator controls

• Scroll function for more alarms

• Text display suitable for full darkness operation

• Displays alarms, faults and disablements

• Possible to change to different event windows

• On-wall mounting

• Conforms to EN 54 regulations

• Conforms to CE standards

• Designed to meet the requirement of the major

maritime classification societies

Description / Application

The unit has been designed for use with AutroSafe 4

Interactive Fire Detection System.

The Information Loop Panel BV-110 serves as an

indication device only. It provides information

related to the defined operation zone(s).

The panel can be configured (by means of the

configuration tool) to show detection zones and point

information in an alarm situation, or detection zones

only.

By operating the More Events Button, it is possible to

scroll through and view detailed information of the first

64 alarms (or 32 first alarms, if the panel is configured to

show both detection zones and points).

The panel can store up to 6 faults and 6

disablements. The total number of faults and

disablements in the system will always be shown,

but it is only possible to scroll through and view

detailed information of the first 6 faults and

disablements (using the More Events Button).

Compatibility - AutroGuard Protectors

When using AutroGuard protectors, note that

BV-110 firmware 1.6 or newer is required.

Operator controls

The panel offers the following buttons:

• More Events button for scrolling through several

alarms within the same event window

• Silence Buzzer (60 dB) for silencing the internal

buzzer. The internal buzzer will remain muted

until a new alarm or fault is triggered

• Next Window button for stepping to a new event

window, for example from Fire Alarm to Fault

Warning window

• Contrast settings: to start the contrast settings

(access level 1), press and hold the Silence

Buzzer button for 5 seconds until audible beep,

observe changes, then release the button to

confirm the new contrast (a new audible beep is

heard)

• Lamp Test button for activating all indicators

Indicators

The panel provides the following indicators:

• Fire Symbol, Alarm Routing Activated, Fault,

Function Disabled, Test, System Fault, Power,

More Events

• Internal buzzer

Capacity

A maximum of 8 panels can be connected to the

detection loop.
