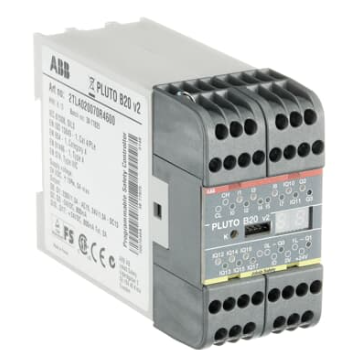

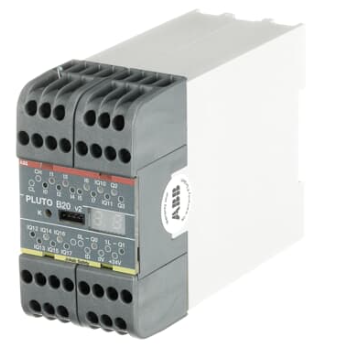

ABB Pluto B20 v2 Programmable safety controller

Pluto is a cost effective, powerful and compact safety PLC for all

machine safety applications. Most safety devices on the market

can be connected directly to Pluto and multiple safety sensors

can be connected to a single input and still achieve the highest

safety level. Programming is done easily in the accompanying

software Pluto Manager.

Pluto is available in different models; simple models for smaller

systems and models with bus communication for larger systems.

Models with analogue inputs are available as well.

Main benefits

• Easy programming and still powerful

• Eliminates the need for extra module for speed monitoring for ex.

• Up to 32 Pluto can exchange data without extra programming

• Safe bus simplifies connection between cabinets in accordance with PL e/SIL3

• Extensive communication possibilities with HMI and PLCs

Main features

• Most Machine Safety functions inclusive speed monitoring and analog input monitoring

• Advanced programming possibilities

• Ladder and TÜV approved function blocks

• PL e/SIL 3
