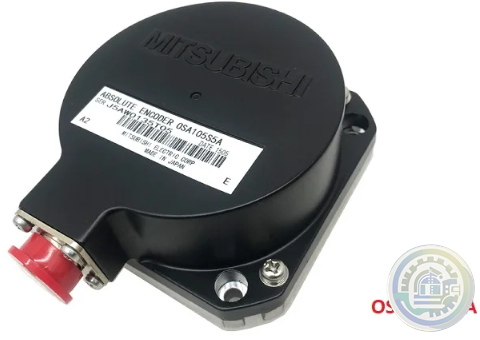

OSA105S2A MITSUBISHI ENCODER

Optimizing control performance of entire system

With one MELSEC MX Controller, up to three different operation and communication cycles

can be set for each axis and device station.*1

There is no need for multiple CPU modules. This greatly improves the cost efficiency of your

equipment.

Even for multi-axis machines, the control performance at high-speed operation cycles can

be partially secured, improving accuracy in processes such as cutting.

High-speed Digital I/O Modules

•Available in positive or negative common (for 16-point input), both positive and

negative common (for 32-point input), and with sink or source transistor (for output)

depending on the type of device or sensor wiring

•8-point common terminal (16-point input) enables mixing of different sensor types

on one input module (different response time can be set for each input point)

•Wide-range rated load voltage from 5 V DC to 24 V DC

•18-point screw terminal available for the input, and high-density 40-pin connector

for the output

High-speed Analog I/O Modules

•High-speed conversion (input:1 μs, output:1 μs) and 16-bit high resolution

•18-point screw terminal block

High-speed analog input

•Synchronization of multiple channels

(inter-modular synchronization increases the number of channels that can be

converted simultaneously)

•Continuous logging enables high-speed collection of contiguous data

(1 μs per channel, 5 μs over four channels)

•Various embedded filters (primary delay, low, high, band-pass filters)

High-speed analog output

•High-speed conversion of 1 μs enables faster response of feedback control

•Faster and smoother predefined wave signal output without requiring additional

programming

Achieve multi-axis machine control with one controller

The MX Controller, equipped with a high-performance multi-core MPU as standard,

integrates sequence, motion, and network control, supporting up to 256 axes.

It supports mixed operation cycles, ensuring high-speed control even with multiple

axes. One controller delivers precise control of individual mechanisms and control

of the entire production line.
