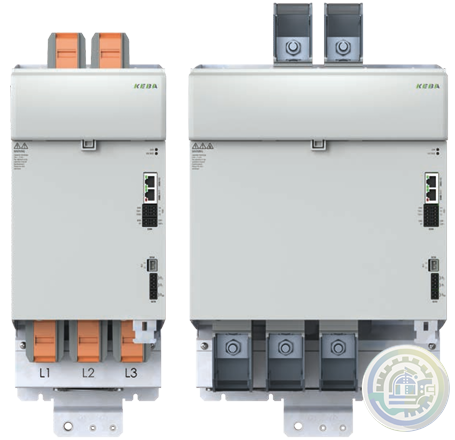

KEBA KeDrive D3-DP 300/x-22xx passive supply units

Cost-effective drive technology for compact machines

Machines with only a few axes need an "all-in-one multi-axis controller" like the new KeDrive D3-AC.

It includes an integrated AC mains input, motor output and control, a mains filter and the braking resistor.

The unique feature of the KeDrive D3-AC is that up to 3 drive controllers are integrated into one device.

This aspect permits a very compact design and greatly reduces the wiring effort.

Analog input module KeConnect AI 240/A features four analog voltage inputs that process differential or

ratiometric input signals in the range from ±10 V or 0-10 V with a resolution of 14 bit.

A sensor failure, should it occur, is reported to the higher-level central module and can be evaluated in the application.

This module is attached directly to a CPU module or can be operated with all KEBA controls by means of a bus coupler.

Two variants of the BL27x series are available:- With four additional

digital inputs (BL 27x/A)- With four additional digital outputs (BL 27x/B)

The BL 210/B (CANopen) and the BL 27x/x series are bus coupler modules that,

in combination with I/O modules,

enable the decentralization and transmission from module islands.

Digital inputs (only BL 27x/A)

Number / type of inputs 4x type 1 (acc. to EN 61131-2)

Voltage range for "1" 15 V ≤ UH ≤ 30 V

Voltage range for "0"-3 V ≤ UL ≤ 5 V

Status display Green LED

Cycle time 1 ms

Usable as interrupt inputs Yes

Response time of the K-bus interrupt 100 μs with 5 kHz input filter

Galvanic isolation No

Debouncing Configurable 1 ms, 100 ms

Digital outputs (only BL 27x/B)

Number of outputs 4

Nominal voltage 24 V DC

Processing time 1 ms

Nominal current of digital outputs 0.5 A at 100  % simultaneity per group

Galvanic isolation No

Status display Orange LED

Protection facility Short-circuit protection

Max. inductive load 100 mJ at 1 Hz
