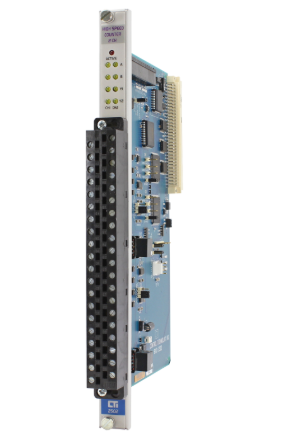

CTI 2502 - High-speed Counter Encoder Module

All Slice I/O modules can also be configured to communicate over Ethernet using Modbus-TCP.

CTI 2500 Series® products are built on the BLUE PlatformTM — CTI’s seamless systems architecture.

Products built on the BLUE PlatformTM are engineered with a consistent design philosophy, a

common operating system and common communications protocols and interfaces. This approach

ensures interoperability between various components of the system as well as between various

product generations to deliver seamless operational communications and control and maximum

efficiency with minimum process downtime and greatly reduced engineering development time.

Whether you choose Classic, Compact or Slice, the seamless systems architecture of the BLUE

PlatformTM will ensure seamless integration and powerful process control.

The 2500S family of Slice I/O modules expands the capability of 2500 Series® Systems

to include small drops of I/O connected over Ethernet.

Slice I/O modules communicate to 2500 Series® Processors using CAMP protocol

and read/write directly to the PLC memory or I/O image table. This allows transparent

integration into the 2500 Series® system without the requirement for any complicated

configuration step.  Ethernet connection to the CPU can be accomplished using the

on-board port on 2500-Cxxx Processors, using a 2572 / 2572-A Ethernet module,

or using the 2500P-ECC1 Ethernet Communications Coprocessor.

Note that when using 2572 or 2572-A modules, Slice I/O can be connected even to

legacy Siemens® and Texas Instruments PLCs.

Several models of Slice I/O are available with different mixes of I/O and with additional

communications options including RS232/485 and 900MHz radio.

Slice I/O modules feature Universal Analog Inputs which allow connection of 0-5V,

0-20mA, thermocouple, and RTD sensors.
