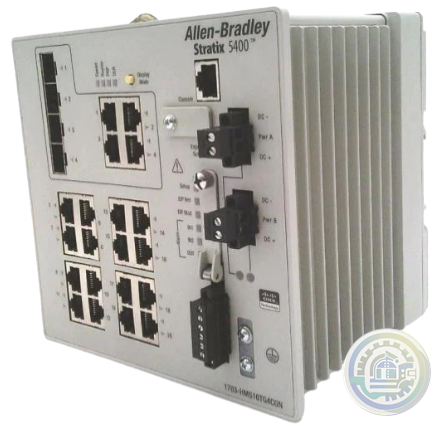

A-B 1783-HMS8T4CGN Stratix 5400 Ethernet Managed Switches

I/O Termination Assemblies (TA)

I/O termination assemblies are inserted into the I/O base units. There are eight

types of termination assemblies (two for each module) depending on the

architecture of your system and the I/O modules you are going to use.

For this example, we only show the duplex assemblies.

• A 1715-TADIB16D, 16-channel duplex TA that provides termination for

16 digital input channels and mates with up to two 1715-IB16D digital input modules

• A 1715-TADOB8DE digital output, 24V DC 8-channel duplex TA that

provides fault tolerant operation for eight digital output channels and

mates with redundant 1715-OB8DE digital output modules

Powerful Modeling Engine

The power of FactoryTalk Analytics LogixAI comes from a modeling engine that is targeted for industrial manufacturing use cases.

It empowers control engineers to deploy machine learning with ControlLogix® as the execution engine

and ControlLogix tags as the primary data source.

It transforms streaming controller data into calculated predictions at the high speeds required for process critical control.

The predicted operational values can be used in place of a manual reading

or in a place where it’s not possible to deploy a traditional sensor or instrument.

Operations teams can use the predictions to improve quality, increase yield,

increase asset utilization and home in on specific learnings for their operational excellence journey.

A modern control system is more than its name implies. It delivers the fast system performance,

high capacity and optimized productivity that you need from a control system today.

Our ControlLogix® and GuardLogix® 5580 family of controllers use the Studio 5000® design

environment as the standard framework that optimizes productivity, reducing time to commission.

This framework manages Integrated Motion over EtherNet/IP for

high-speed motion applications and SIL2/PLd and SIL3/PLe safety solutions.
