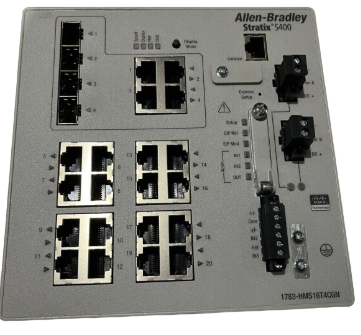

A-B 1783-HMS16T4CGN Stratix 5400 Ethernet Managed Switches

This addition to the portfolio exhibits increased versatility with the

ability to support multiple network configurations. When used as a

layer 2 switch, the Stratix 5400 is an ideal solution for heavy industry

applications where dual ring architectures are required or where high

performance end devices, such as video or telephony, are needed.

When acting as a Layer 3 switch, routing is enabled between segmented

networks for better performance and protection from unwanted network

traffic. Segmenting the network helps to ease network changes, to

simplify network security management by building domains of trust and

to increase efficiency.

By choosing a switch co-developed by Rockwell Automation and Cisco,

your Operations Technology (OT) and Information Technology (IT)

professionals leverage tools and technology that is familiar to them. By

helping to provide optimized integration, you can experience easier

commissioning and faster diagnostics retrieval.

1715 Digital and Analog I/O modules

Your system can be configured with any combination of I/O modules, and in

either Simplex or Duplex mode. These I/O modules can be included in your system:

• 1715-IB16D 16-channel digital input module

• 1715-OB8DE 8-channel digital output module

• 1715-IF16 16-channel analog input module

• 1715-OF8I 8-channel analog output module

Power Requirements

A 24V DC power supply is required. For proper duplex operation, two power

supplies are recommended. This is not required for fail-safe safety systems but for

availability or energize-to-action systems.
