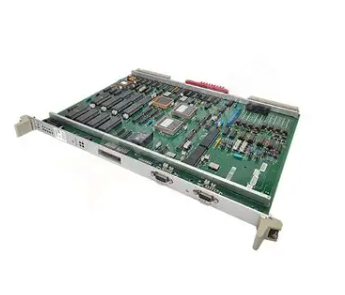

ALSTOM N895600512D N895600051C ECPU_1 N895600200Q Industrial Manufacturing module

Innovative Concepts

To satisfy the diverse requirements of its extensive range of available speed drives,

ALSTOM has a range of controllers available from 16-bit, fixed point, embedded

software versions to 32-bit floating point versions.

ALSTOM recently developed a new power electronic controller family (PEC) that ranges

from single card units (standard or advanced) for products and small systems to modular,

rack based arrangements, suitable for the most complex applications.

ALSTOM has embarked on a programme to make the PEC family available for all of its solutions.

The advantages that the PEC family will bring to the user are numerous, some features are highlighted below.

Recent innovations in drive solutions include:

a new type of electric propulsion that mounts the motor in an under-ship pod;

a 19MVA, 4.2kV an IGBT propulsion converter and motor for electric warship;

100MVA converters for pumped storage systems;

and 15MVA, 50Hz, three phase to single phase traction supply converters with

Active Energy Management.

For systems integrators, who need high-quality drive components to

build into their own drive solutions,ALSTOM’s range of drives also includes low voltage

drive modules, inverters, and rectifiers up to 3.6MW.

Research in power electronics is handled by a dedicated ALSTOM power electronics research team.

Hardware and software products developed through this process are marketed under the ALSPATM

trademark. Each one benefits from ALSTOM's hands-on experience in the field, and from an ongoing

commitment to the continued development of increasingly more competitive, more reliable, and

more open solutions for higher performance.

Common Programming Tools

for all Drives and Automation

The new PEC family provides a single architecture for all drives in which the essential features are implemented

using common technologies, including:

• Pentium class processor operating at 32-bit with floating point calculations

• Common operating system, used by both drives and automation

• IEC 61131-3 programming with Function Block Diagram as the core language

• Common control structure built from a common library of function blocks

• Common programming tools

• Common HMI systems

• Communication interfaces including all popular fieldbusses

• All hardware, software and communication interfaces based upon industry standards
