Emerson VE22UPS066PKM Advanced Batch Units

Specifications

• Number of segments (ports)

• Number of field devices

• 16 per port (dependent on device power consumption)

• Number of Ff funtion blocks

• 96 per card (64 fieldbus and 32 standard DeltaV)

• Voltage provided per segment

• 28-30 VDC (short circuit protected)

• Current provided per segment

• 400 mA (short circuit protected)

• Isolation

• Each port is isolated from the system and from each other and factory tested to 1500 VDC.

• Nominal signal range (span)

• Fieldbus Foundation IEC 61158-2

• LocalBus current per card (12 VDC nominal)

• 200 mA typical, 300 mA maximum

• Heat Dissipation

• 7.2 W

• Operating Temperature

• -40 to 70 °C (-40 to 158 °F)

• Storage Temperature

• -40 to 85 °C (-40 to 185 °F)

• Reltive Humidity

• 5 to 95% , non-condensing

• Shock

• 10 g½-sine wave for 11 ms

• Vibration

• 1 mm peak-to-peak from 5 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz

Maximize smart device capabilities. Increase your quality and throughput by taking advantage of the added diagnostics

of FOUNDATION Fieldbus I/O devices. Field device status is updated continuously using FOUNDATION Fieldbus I/O.

For multi-variable devices, all process variables are available on the single fieldbus at the cost of a single Device Signal Tag.

Redundant H1 cards provide increased availability.

The DeltaV system offers redundant H1 interfaces. The two H1

interfaces are connected with a redundant terminal block to

provide back-up link active schedule (LAS) capability that also

maintains communication with the host system.

Transfer to the standby card is automatic and requires no special configuration.

Ongoing diagnostics ensure the standby H1 card is available on demand.

This process requires no user interaction.

Recommended Products P/N：

EMERSON 24VDC System Power Supply SE5009

EMERSON S-series AS-i Interface Card

EMERSON S-series Actuator Sensor Interface Card, includes terminal block SE4009

EMERSON S-series 4-port Foundation™ Fieldbus I/O

EMERSON SE4019P0 Simplex H1 4-port Plus; Fieldbus I/O Interface with Terminalblock

EMERSON SE4039P0 Redundant H1 4-port Plus; Fieldbus I/O Interface with Terminalblock

EMERSON DeltaV SISTM Logic Solver

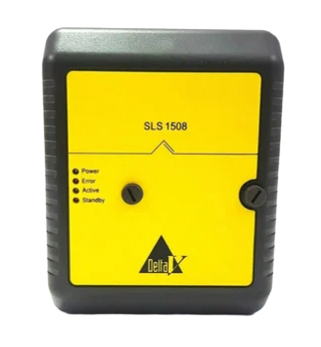

EMERSON VS3202 DeltaV SLS 1508 Redundant Logic Solver
