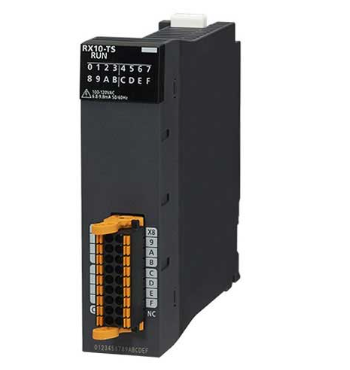

Digital Input Module Mitsubishi RX10-TS

What is TSN*1?

TSN is a set of international standards, which define the time synchronization method

and the time sharing method. By adding these to Ethernet technology, control

communications (ensuring real time reaction), which cannot be perform with

conventional Ethernet, and information communications (non-realtime communications)

can be performed together.

The CC-Link IE TSN time sharing method enables communications independent of the

number of device stations

The time sharing method used as the communications protocol allows simultaneous input

and output communication between connected stations.

High-speed link scan significantly reduces production cycles. Mixed communication cycles

are also possible, ensuring fast and smooth communication even with many device stations.

Optimizing control performance of entire system

With one MELSEC MX Controller, up to three different operation and communication cycles

can be set for each axis and device station.*1

There is no need for multiple CPU modules. This greatly improves the cost efficiency of your

equipment.

Even for multi-axis machines, the control performance at high-speed operation cycles can

be partially secured, improving accuracy in processes such as cutting.

Precise mark input and cutting not dependent on scan time

Even in applications that require high-speed I/O control without variability, such as roll-to-roll

control, the MX Controller provides precise I/O over the network that is not dependent on the

scan time. Minimized jitter in the I/O timing of mark detection and cutting reduces variations

in web material detection and cut length. This improves yield in high-speed production lines.

Optimize multi-axis system with graphical user interface

Advanced synchronous control*1

Software replaces machinery mechanisms (such as gears, shafts, speed change gears, and cams)

for easier synchronous control. Even for machines that require multi-axis synchronization, such as

winders and coaters, it is easy to adjust the cam control and operation pattern to eliminate position

deviation. Fine-tuning the cutting position and adjusting the synchronization position according to

the transportation speed can achieve high quality and high productivity.

• Start IoT solutions with MI3321G-W, MI3315G-W by connecting shop floor with IoT

• High resolution, large screen display, and equipped with all necessary functions to

visualize factories in one body

• Windows ® OS and coordination with Edgecross enable wider usage

Achieve multi-axis machine control with one controller

The MX Controller, equipped with a high-performance multi-core MPU as standard,

integrates sequence, motion, and network control, supporting up to 256 axes.

It supports mixed operation cycles, ensuring high-speed control even with multiple

axes. One controller delivers precise control of individual mechanisms and control

of the entire production line.

Achieving high-speed and high-accuracy motion control
