B&R 5CFCRD.0064-03 CompactFlash 64 MB Western Digital (SLC)

The benchmark for automation

B&R continues the concept of the X20 control and I/O system in the X90 mobile product line. This allows

B&R technology to also be used in mobile and outdoor applications in very harsh environmental conditions.

With its industrial design, the X90 mobile system is not only a remote I/O system, but a complete control

solution. The different product variants are freely configured based on X90 mobile modules. The X90 mobile

product line thus offers a scalable automation solution that is the perfect basis for very simple to high

performance, decentralized requirements.

X90 mobile products have IP69K protection on all sides. The robust die-cast aluminum housing, which is

also used as a heat sink for power outputs, allows for surface temperatures ranging from -40 to 85°C.

The X90 mobile "Safety" variant is also equipped with a safe control system – also known as a SafeLOGIC

controller. The multifunction I/Os can be used in parallel by the X90 SafeLOGIC controller and meet require

ments up to SIL 2.

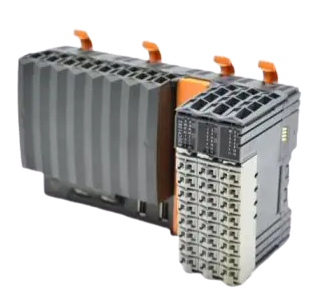

The X20 Compact-S series of controllers is available in different versions.

In this way, the customer gets the product that best meets the requirements

of the machine both technically and economically.

The processor performance of the compact controllers ranges from 166 MHz (compatible) to 667 MHz.

The most economical models are equipped with 128 MB RAM, 8 kB non-volatile RAM and a 256 MB flash drive.

The most powerful Compact-S controllers have cycle times as low as 400 µs.

512 MB of RAM, 64 kB of non-volatile RAM, and a 256 MB Flash drive.

RAM, 64 kB non-volatile RAM, and a 2 GB internal flash drive.

The controller offers a wide range of communication options via POWERLINK,

Ethernet, USB and RS232. Optional RS485 or CAN interfaces are also available.

If an application requires additional interfaces,

the controller can be modularly expanded with 1 or 2 X20 interface slots.

This allows the use of the entire X20 fieldbus interface product range.
