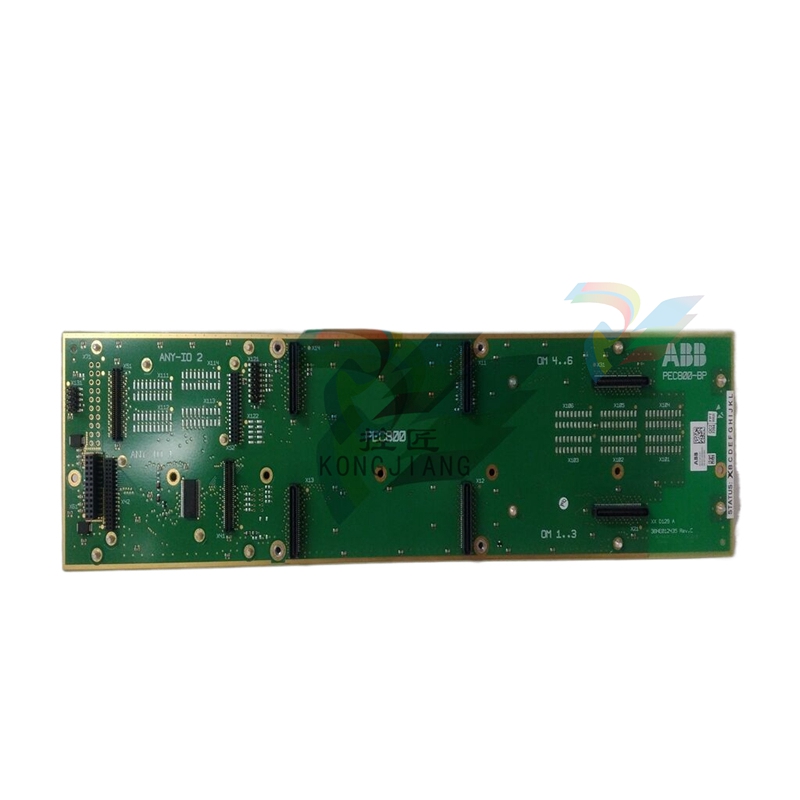

ABB XXD129A01 PEC800-BP module

MService targets two main application scenarios:

 Customer’s staff can use the device for performance analysis and continuous support of

maintenance planning for MNS and MNS iS system, with MService installed as permanent part of the switchgear.

 ABB’s service personnel uses the device to place it in a customer’s switchgear to

support customer decisions in keeping the switchgear in good condition by collecting

data for a certain time and derive an assessment on the switchgear performance and operational status.

To fit to these scenarios, the MService employs a small-scale, compact approach to enable fast

commissioning and ease of use.

Fieldbus

MLink can include Fieldbus communication to DCS. The type of Fieldbus must be selected

before ordering the MLink type. The Fieldbus specific information (PROFIBUS, MODBUS etc.)

can be found in the following documents:

MNS iS Interface Manual Profibus

MNS iS Interface Manual Modbus

MNS iS Interface Manual Profinet IO

MService Condition Monitoring covers the following main functions:

 Collection of operational data of the supervised modules

 Collection of all alarms and trips generated in the supervised modules

 Collection of maintenance warnings derived from additional assessment logic related to the supervised modules.

 Display of the MNS or MNS iS system structure highlighting modules signaling problems

 Display of historical data in trend displays

 Detailed information on the identification, location, and type of supervised modules

 Online supervision of temperature or power loss related problems within individual cubicles.

MService can supervise all modules in MNS and MNS iS, which are connected to the internal

switchgear communication bus.
