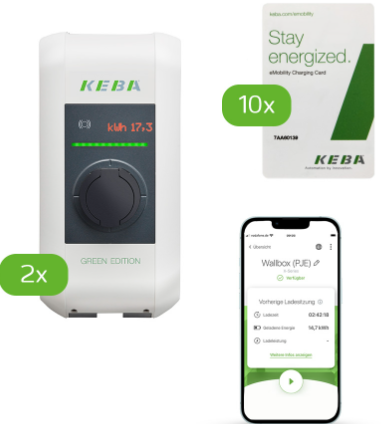

KEBA XC540/C-0000 2GB MicroSD card

Dimensioning of the power supply line:

When dimensioning the power supply line also observe the possible reduction factors and the increased en

vironmental temperatures in the interior connection area of the charging station (see temperature rating of

the supply terminals). Under certain circumstances, this can lead to an increase of the cable cross-section

and to the adaptation of the temperature resistance of the power supply line.

Wireless Mobile IPC HMI with integrated safety

Combine your HMIs - PLC, Robot, and ERP system along with safety into one device for simple and mobile operator control that

increases productivity and safety.

Selection of the residual-current device (RCD):

● Every charging station must be connected via its own RCD. No other circuits may be connected to this

RCD.

● Residual-current device of at least type A (30 mA triggering current).

If the vehicles to be charged are not known (e.g. semi-public area), measures must be taken for protec

tion where DC residual currents (>6 mA) occur. This can be realized, for example, through device ver

sion KC-P30-xxxxxxx2. the use of an RCD type specifically intended for electric vehicles or with a RCD

type B. The vehicle manufacturer specifications must also be observed.

● If a charging station is protected with a type B residual-current device, every upstream residual-current

device, even those not assigned to the charging station, must either be type B or equipped with a DC

residual-current detection device.

● The nominal current IN

must be selected to match the circuit breaker and back-up fuse.

Dimensioning of the line circuit breaker:

When dimensioning the line circuit breaker also observe the increased environmental temperatures inside

the switch cabinet. Under certain circumstances, this can make a reduction of the charging current specifica

tion necessary in order to increase the system availability.

● Determine the nominal current according to the type plate specification in coordination with the desired

charging capacity (DIP switch settings for charging current specification) and the power supply line.
