Johnson Controls WRG1830/ZFR183x Pro Wireless Field Bus System

Commissioning equipment controllers

You commission MS/TP equipment controllers with the

CCT software using either Mobile Access Portal (MAP)

Gateway , a ZFR wireless dongle, or through the FX

Supervisory Controller acting as a BACnet router. For

detailed information about commissioning equipment

controllers, refer to Controller Tool Help (LIT-12011147).

Troubleshooting equipment

controllers

Observe the Status LEDs on the front of the equipment

controller. Table 10 provides LED status indicator

information for troubleshooting the controller. To

troubleshoot an integral or local controller display, refer

to the FX-DIS1710 Local Controller Display Technical Bulletin

(LIT-12011666).

Communications protocols

The CGM and CVM controllers can communicate using

BACnet MS/TP, N2. or wireless Zigbee. The controllers

auto-detect the protocol that is connected, which enables

the same controller to support multiple communication

protocols without the need to purchase a special model

per protocol, and without extra manual setup.

The XPM expansion modules can communicate using

BACnet MS/TP, or wireless Zigbee® using a ZFR/ZFR Pro

Wireless Field Bus Router (on the FC Bus only). By default,

the XPM expansion modules communicate using the

BACnet MS/TP protocol.

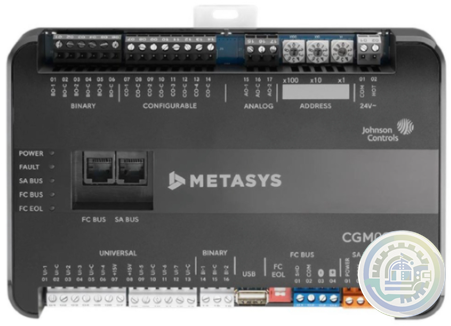

The CGM09090 and CGM04060 General Purpose

Application MS/TP Controllers (CGs) are equipment

controllers that run pre-engineered and user

programmable applications, and provide the inputs and

outputs required to monitor and control a wide variety of

HVAC and other facility equipment. CG series controllers

operate on an RS-485 BACnet® MS/TP Bus as BACnet

Advanced Application Controllers (B-AACs) and integrate

into Johnson Controls® and third-party BACnet systems.

CG series controllers include an integral real-time clock,

which enables the controllers to monitor and control

schedules, calendars, and trends, and operate for

extended periods as stand-alone controllers when offline

from the Facility Explorer® system network.
