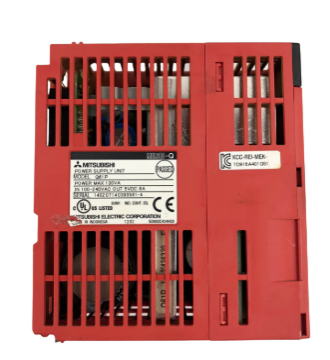

Melsec-q Series Mitsubishi Q61P Power Supply PLC

High-speed Digital I/O Modules

•Available in positive or negative common (for 16-point input), both positive and

negative common (for 32-point input), and with sink or source transistor (for output)

depending on the type of device or sensor wiring

•8-point common terminal (16-point input) enables mixing of different sensor types

on one input module (different response time can be set for each input point)

•Wide-range rated load voltage from 5 V DC to 24 V DC

•18-point screw terminal available for the input, and high-density 40-pin connector

for the output

High resolution, large screen display, and equipped with all necessary functions to visualize

factories in one body

Beautiful, stunning, large screen monitor offers easy-to-view display and user-friendly operation

MI3321G-W, MI3315G-W is equipped with large 21.5-inch widescreen display and a full HD high resolution LCD panel *1 .

Collected data can be displayed on the easy-to-view screen and can be operated by touch operations.

*1 Equipped on MI3321G-W.

PCAP (Projected Capacitive) touch panel

Light-touch operation is realized with a PCAP touch panel that is widely used for smartphones and tablet devices.

The touch panel with high transmittance offers clear and high visibility display.

Data analysis/diagnosis/monitoring

Equipped with Intel ® Core™ i3 CPU, 8 GB memory, and 64 GB SSD.

Simple analysis/diagnosis/monitoring of collected data contributes to improve shop floor.

Windows ® OS and coordination with Edgecross enable wider usage

Windows ® 10 IoT Enterprise pre-installed

Not only familiar Windows ® applications, but also usercreated applications can be used to configure

systems that meet requirements of individual customers.

In addition, long-term support of Windows ® 10 IoT Enterprise ensures safe use of facilities and devices

with long life cycles.
