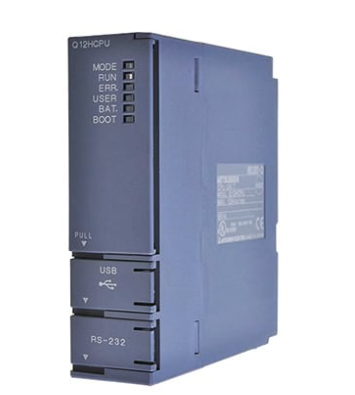

Mitsubishi Q12HCPU Series CPU Module

Achieve multi-axis machine control with one controller

The MX Controller, equipped with a high-performance multi-core MPU as standard,

integrates sequence, motion, and network control, supporting up to 256 axes.

It supports mixed operation cycles, ensuring high-speed control even with multiple

axes. One controller delivers precise control of individual mechanisms and control

of the entire production line.

Achieving high-speed and high-accuracy motion control

Multi-core MPU

A high-speed multi-core MPU significantly increases processing performance,

including double-precision floating-point operations. Inter-core communication

allows multiple cores to perform different tasks simultaneously, enabling parallel

high-speed sequence, motion, and network control. Distributed control across

cores shortens the overall production cycle.

Core load can be monitored and adjusted for optimal machine control

The performance monitor visualizes the operation cycles and load status for each

core assigned to run the program.

Optimize performance by distributing load through mixed operation cycles based

on visualized load status.

Essential CC-Link IE TSN technology for large-scale equipment

High-speed and high-accuracy coordination with a wide range of devices

With a single MELSEC MX controller, you can build a system that combines real-time

control communication for factory automation equipment with information

communication for IT systems.

High resolution, large screen display, and equipped with all necessary functions to visualize

factories in one body

Beautiful, stunning, large screen monitor offers easy-to-view display and user-friendly operation

MI3321G-W, MI3315G-W is equipped with large 21.5-inch widescreen display and a full HD high resolution LCD panel *1 .

Collected data can be displayed on the easy-to-view screen and can be operated by touch operations.

*1 Equipped on MI3321G-W.

PCAP (Projected Capacitive) touch panel

Light-touch operation is realized with a PCAP touch panel that is widely used for smartphones and tablet devices.

The touch panel with high transmittance offers clear and high visibility display.

Data analysis/diagnosis/monitoring

Equipped with Intel ® Core™ i3 CPU, 8 GB memory, and 64 GB SSD.

Simple analysis/diagnosis/monitoring of collected data contributes to improve shop floor.
