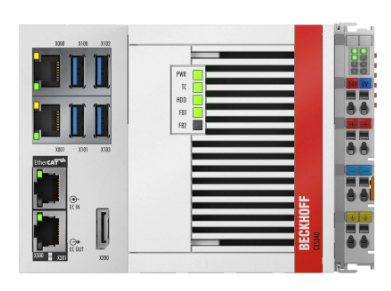

Beckhoff CX5340 | Embedded PC with Intel Atom® x6425RE

The CX5340 is an embedded PC based on an x6425RE Intel Atom® processor

with 1.9 GHz (quad-core) and 8 GB LPDDR4 RAM. The basic equipment includes

two independent Gigabit-capable Ethernet interfaces as well as four USB 3.1 and

one DisplayPort interface. A wide range of additional connection options or

gateway functions are available thanks to the optional interface and I/O level,

which can consist of E-bus or K-bus terminals and can be fitted ex factory.

A system module or fieldbus module from the CX2000 series can be plugged in

via the multi-pole connection on the left-hand side of the device. Although the

total number of plug-in modules is limited to one, two additional Gigabit-Ethernet

interfaces or four additional USB interfaces or another fieldbus interface can also

be implemented in this way, for example. The CX5340 is characterized by an

internally electrically isolated power supply unit, built-in 1-second UPS, and low

overall power consumption and fanless cooling.

Depending on the installed TwinCAT runtime environment, the device can be used

for the implementation of PLC or PLC/motion control projects (with or without

visualization). Motion control applications with interpolating axis motions can also

be executed. The extended operating temperature range from -25…+60°C allows

use in climatically demanding applications.

The system modules are connected to the CPU on the left-hand side via a

multi-pin connector. They are connected internally via PCI Express®.

A maximum of two modules can be connected in any order for the CX20xx

family. For CX52x0. CX53x0. or CX56x0 series devices, one module can be

connected, and only the upper module port can be used, as these CPUs

only have one PCI Express® lane on the left-hand side.

The CX2500-Bxxx fieldbus slave modules are left-sided attachments

for the Embedded PC series CX20xx, CX52x0. CX53x0 and CX56x0.

The use of systems with fieldbus slave modules enables the use of

a CX system as a subordinate local controller for the construction of

complex or modular systems. External process data are received from

the master and processed, or data from its own process peripherals

are returned to the master controller directly or processed.

The CX2500-B310 fieldbus slave module assumes the function of a

PROFIBUS slave. Each module occupies a PCI Express® lane, so that

a total of four of these modules can be connected in any desired

combination to the left side of a CX20xx group. The fieldbus slave

modules are single-channel modules. The CX2500-B310 fieldbus slave

module for PROFIBUS can present itself to the master as a multiple

(max. quadruple) virtual slave station, resulting in a four-fold increase

in the quantity of exchanged process data.
