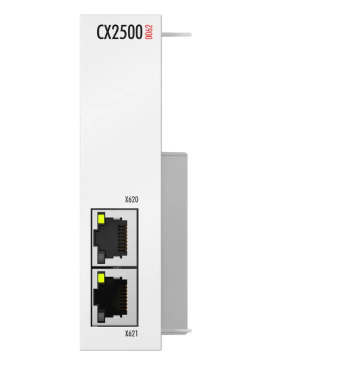

Beckhoff CX2500-0062 | 2.5 Gbit Ethernet module for CX20xx, CX52x0, CX53x0, CX56x0

The system modules are connected to the CPU on the left-hand side via a

multi-pin connector. They are connected internally via PCI Express®.

A maximum of two modules can be connected in any order for the CX20xx

family. For CX52x0. CX53x0. or CX56x0 series devices, one module can be

connected, and only the upper module port can be used, as these CPUs

only have one PCI Express® lane on the left-hand side.

The CX2500-0062 module provides two independent Ethernet interfaces.

The implemented Intel® Ethernet Controller I226 supports data transfer

rates of up to 2.5 Gbit/s. This makes the module useful for applications

that require very high data rates and short reaction times.

The CX8091 is a control system with a switched Ethernet port. It supports

either the BACnet or OPC UA protocols. Simultaneous use

is not recommended due to the small memory. K-bus or E-bus terminals

can be attached as required; the CX8091 automatically

recognizes the type of I/O system connected during the start-up phase.

The control system is programmed with TwinCAT 2 via the fieldbus interface

or the additional Ethernet interface.

BACnet (Building Automation Control Network) is a standardized,

manufacturer-independent communication protocol for

automation. Areas of application include HVAC, lighting control, safety and

fire alarm technology.

The TwinCAT OPC UA Server provides the functionality of the OPC Unified

Architecture (UA) specification. In addition to data access techniques UA also

specifies the data coding and the transport protocols.

The CX7291 Embedded PC has an Arm® Cortex®-A9 single-core processor

with 720 MHz. In the basic configuration, the CX7291 has a slot for a microSD

card and an Ethernet interface. As a special feature, the CX7000 series has

eight integrated multi-functional inputs as well as four integrated multi-functional

outputs.

E-bus or K-bus terminals can be attached as required; the CX7291 automatically

recognizes the type of I/O system connected during the start-up phase.

The control system is programmed with TwinCAT 3 via the Ethernet interface.

BACnet (Building Automation Control Network) is a standardized, manufacturer

-independent communication protocol for building automation.

Areas of application include HVAC, lighting control, safety and fire alarm technology.

The CX7051 Embedded PC has an Arm® Cortex®-M7 single-core processor

with 480 MHz. In the basic configuration, the CX7051 has a slot for a microSD

card and an Ethernet interface. As a special feature, the CX7000 series has

eight integrated multi-functional inputs as well as four integrated multi-functional

outputs.
