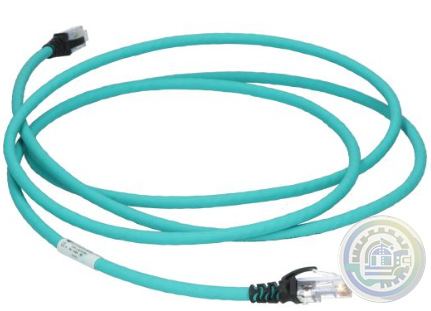

A-B 1585J-M4TBJM-2 Industrial Ethernet Patchcords

The ControlLogix control platform is:

seamless

enables easy integration with existing PLC-based systems. Users on existing net works can

send or receive messages to/from program controllers on other networks transparently.

fast

the ControlLogix platform provides high-speed data-transfers across the backplane

and the ControlLogix5550 controller provides a high-speed control platform.

scalable

provides a modular approach to control. Add as many or as few controllers and

communication modules as you need. You can have multiple controllers in the

same chassis. Select the controller memory size that meets your application.

industrial

offers a hardware platform designed to withstand the vibrations, thermal extremes,

and electrical noise associated with harsh industrial settings.

integrated establishes a platform that integrates multiple technologies,

including sequential,motion, drive, and process applications.

compact

meets the needs of many applications where control is highly distributed and panel

Barrel Control

Select barrel control for multiple–zone applications in which there is

thermal conduction between the zones. Injection molding and

extrusion are good example applications because they use multiple

heater bands (zones) mounted on one thermal conductor (the metal

barrel). The barrel conducts heat between different zones. If you

select barrel control, also select between inner and outer zones (word

1, bit 13 for channel 1). A barrel loop is autotuned as the temperature

rises from a cold start to a temperature setpoint during startup.

Introducing ControlLogix for High Performance Control

ControlLogix provides a high performance control platform for multiple types of control.

You can perform sequential, process, drive or motion control - in any combination - with this single plat form.

Because the platform is modular, you can design, build, and modify it efficiently - with significant training and engineering savings.

Engineering Productivity is increased with advanced configuration tools,

memory structure and symbolic programming that requires less programming and memory.

And your investment in ControlLogix is assured through with such features as flash-upgradable firmware.

The flexible ControlLogix platform permits multiple proces sors, networks, and I/O to be mixed without restrictions.

As your application grows, you can use the NetLinx architecture for control and configuration of devices and collection of information

across Ethernet, ControlNet, DeviceNet and Foundation Fieldbus networks.
