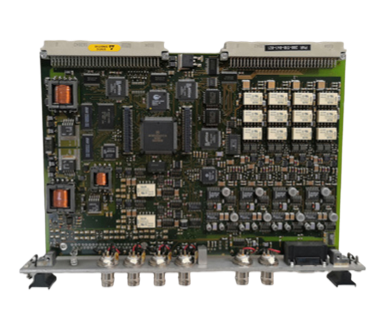

Vibro-meter vmf-RLC16-V111 200-570-101-015 200-570-000-111 Relay Card

Vibration Meter VM600 Mk2

The Vibrometer VM600Mk2 is an advanced vibration monitoring and

protection system for complex and critical rotating machinery.

Its high channel density and fully configurable 19” card structure make

it suitable for complex installations and large (critical) machinery.

Benefits

Modular System Architecture

The efficient 19-inch modular card structure allows the creation of

application-specific monitoring, protection or combination systems.

SIL-certified protection

The VM600Mk2 protection card is designed to meet the vibration

protection requirements of SIL 2 certification,

making the system suitable for protecting the most critical rotating

machinery.

Centralized architecture

Its centralized architecture allows for high channel density, making

the VM600Mk2 excellent at providing advanced vibration protection

and monitoring for large (critical) machinery.

“State-of-the-art vibration protection and monitoring system for

critical rotating machinery”

The MPC4 Machine Protection Card is the centerpiece of the VM600 series of Machine

Protection Systems (MPS) from Meggitt's Vibrometer® product line.

The card is extremely versatile, capable of measuring and monitoring up to four

dynamic signal inputs and two velocity inputs simultaneously.

The dynamic signal inputs are fully programmable and can accept the following signals

acceleration, velocity and displacement (proximity) signals.

On-board multi-channel processing allows measurement of a wide range of physical

parameters including relative and absolute vibration, Smax, eccentricity, thrust position,

absolute and differential case expansion, displacement and dynamic pressure.

Digital processing includes digital filtering, integration or differentiation (if required),

rectification (RMS, average, true peak, or true peak-to-peak), order tracking

(amplitude and phase), and measurement of transducer-to-target clearance.

The VibroSmart® distributed monitoring system (DMS) is a system of modular and scalable

products designed for condition monitoring and machinery protection applications for power

generation turbines, oil and gas applications and auxiliary balance-of-plant equipment.

VibroSmart® modules can be mounted directly on machinery, eliminating the need for costly

cabling, because it is designed and certified to work in extremes, such as harsh industrial

environments characterized by potentially explosive atmospheres (Ex Zone 2), high

temperatures (70°C, 158°F) and high mechanical stress. VibroSmart® complements the

VM600Mk2/VM600 series of rack-based solutions from Meggitt’s vibro-meter® product line

and is compatible with the same VibroSight® machinery monitoring system software.
