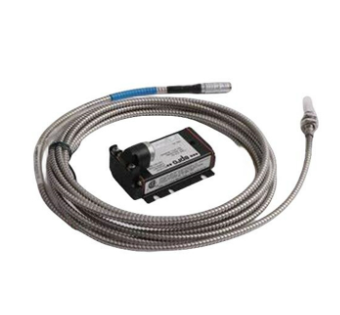

EPRO CON011 9200-00001 Eddy Current Signal Converter

CSA − Conditions of acceptability

This device must be supplied with safety low voltage SELV LPS (C22.2 60950−1) 24V. The

voltage required for operation must be drawn from a separate power supply.

The IMR system should be placed in a suitable fire enclosure.

The IMR system is evaluated for an ambient of 0°C to 45°C.

Adequate ventilation space has to be provided so that heat does not build up. The ventilation

space must be at least 1 RU (13/4 inch) in all directions. If the ambient temperature of the rack

rises above 45 °C, cool this instrument with a forced air fan, cooler, or similar.

When mounting several IMR units above each other in one cabinet, install cooling fan racks in

between instead of the ventilation space. The necessary specifications for cooling fan racks

result from the environmental and sitting criterions of the cabinet and thus cannot be defined

generally.

Scope of Delivery

The following parts are included in the scope of delivery and must be contained in the shipment:

• Shaft Vibration Monitor A6110

• This product information

Accessories (not included in delivery):

• MMS ParaKit (order no.: 9510−00027)

If the contents are incomplete or if is there any damage, so directly complain at the bearer. The

competent epro sales agency must be also informed, to enable repair or replacement for the

monitor. Repair or calibration of this instrument may only be made at epro.

SHAFT VIBRATION MONITOR

The two−channel Shaft Vibration Monitor A6110 is a module

of the A6000 machine monitoring system. The micro−processor

controlled monitor is used in conjunction with two eddy current

measuring chains to measure and monitor the relative shaft

vibration on all types of turbines,compressors fans, gear units, etc.

The two channels of the monitor can be used as separate channels

or they can be linked together via the configuration.

The following operating modes are possible:

• Dual channel operation.

• The calculation and output of the maximum value Smax in accordance with ISO 10817 (DIN

45670. characteristic value A).

• The calculation and output of the greater vibration width SPPmax in accordance with ISO

10817 (DIN 45 670. characteristic value B) or Max(X,Y) in accordance with API 670.
