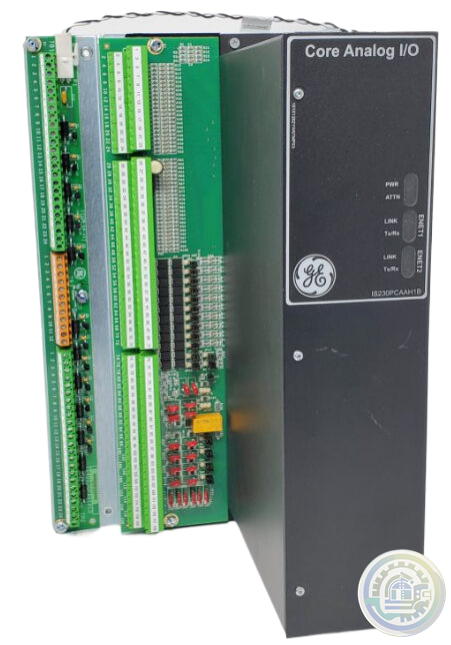

GE Mark VIe & VIeS IS230PCAAH1B - Core Analog I/O Module
❤ Add to collection

GE Mark VIe & VIeS IS230PCAAH1B - Core Analog I/O Module

+86-18144100983
kongjiangauto@163.com
wind, petroleum, chemical, natural gas, Marine, mining, aviation, electronics, steel, nuclear power, electric power, coking, air separation and so on
PLC, DCS, servo, analog, Ethernet, digital, redundant module, tension system, excitation, generator management, human-machine interface, detection card, sensor, AC drive, etc
U.S.＄9542.00
U.S.＄5019.00
Weight：3.200KG
Quantity：
(Inventory: 6)
Buy now
Add to cart
Product parameters
  • Tell:+86-18144100983
  • email:kongjiangauto@163.com
  • Application:wind/ petroleum/ chemical/ natural gas/ Marine/ mining/ aviation/ electronics/ steel/ nuclear power/ electric power/ coking/ air separation and so on
  • Series:PLC/ DCS/ servo/ analog/ Ethernet/ digital/ redundant module/ tension system/ excitation/ generator management/ human-machine interface/ detection card/ sensor/ AC drive/ etc
Feature

FUNCTIONAL DESCRIPTION

IS230PCAAH1B is a Core Analog I/O Module manufactured and designed

by General Electric as part of the Mark VIe Series used in distributed control systems.

A sizable amount of the analog signal I/O needed to run a gas turbine is provided

by the Core Analog (PCAA) module and related Core Analog (TCAS and TCAT) terminal board.

Thermocouple, 4-20 mA current loop, seismic, linear variable differential transformer

(LVDT) excitation and inputs, pulse rate, and servo coil outputs are all provided by PCAA and TCAT.

In simplex, dual, and TMR systems, PCAA is applicable.

To one, two, or three linked PCAA modules, a single TCAT terminal board fans signal inputs.

In addition to the terminals on PCAA and TCAT, a nearby JGPA board also has shield ground and 24 V field power connectors.

PCAA Core Analog

Two application I/O boards, a terminal board, and a processor board that is shared

by all Mark* VIe distributed I/O are all included in PCAA.

The various boards that make up the module are not supported for diagnosis or replacement,

making the entire module the least changeable component.

Dual RJ45 Ethernet connectors and the 28 V dc power connector P5 are used to supply the module with input.

120 box terminals in the Euro style are located on the module edge and are used for field device I/O.

Connector P4 provides power to a JGPA board.

Two 68-pin cables on connectors P1 and P2 are used to connect the module to the TCAT.

PCAA divides the signals into two categories. The TCAT terminal board is used to

route signal inputs that can be fanned from a single input into a single, dual, or TMR PCAA module.

The terminals of PCAA are wired with signals that are exclusive to a single PCAA module.

As a result, the signal split in the following table is produced.

If the fanned inputs are not necessary, PCAA can be used in place of TCAT.

The JGPA shield ground connections are typically electrically connected to the sheet metal that the board is mounted on.

The ground path for the terminals is then provided by the mounting.

It may be necessary for some situations to specify a shield ground that is separate from the mounting sheet metal.

The JGPA is mounted in these applications utilizing hardware that separates the board from the sheet metal.

Between one or more JGPA terminals and the necessary shield ground

potential in these applications, a suitable ground wire must be provided.

Check the power and Ethernet status indicator lights after powering on the module using the P5 connector.

  • GE Multilin™ M60 Motor protection system EnerVista Launchpad
  • GE Multilin™ M60 Motor protection system Multi-Language
  • GE Multilin™ M60 Motor protection system Direct I/O Messaging
  • GE Multilin™ M60 Motor protection system Communications
  • GE Multilin™ M60 Motor protection system Role Based Access Control
  • GE Multilin™ M60 Motor protection system Fault and Disturbance Recording
  • GE Multilin™ M60 Motor protection system Advanced Device Health Diagnostics
  • GE Multilin™ M60 Motor protection system Scalable Hardware
  • GE Multilin™ M60 Motor protection system ​IEC 61850 Process Bus
  • GE Multilin™ M60 Motor protection system Underpower Protection
  • GE Multilin™ M60 Motor protection system Breaker Failure Protection
  • GE Multilin™ M60 Motor protection system Acceleration Time
  • GE Multilin™ M60 Motor protection system Protection and Control
  • GE Multilin™ M60 Motor protection system APPLICATIONS
  • GE Multilin™ M60 Motor protection system KEY BENEFITS
  • GE Multilin D485 Modbus to DeviceNet Converter
  • GE Multilin™ C30 Substation Hardened Programmable Logic Controller EnerVista Integrator
  • GE Multilin™ C30 Substation Hardened Programmable Logic Controller ​Viewpoint Monitoring
  • GE Multilin™ C30 Substation Hardened Programmable Logic Controller EnerVista Software
  • GE Multilin™ C30 Substation Hardened Programmable Logic Controller LAN Redundancy
  • GE Multilin™ C30 Substation Hardened Programmable Logic Controller Communications
  • GE Multilin™ C30 Substation Hardened Programmable Logic Controller Cyber Security
  • GE Multilin™ C30 Substation Hardened Programmable Logic Controller Monitoring and Metering
  • GE Multilin™ C30 Substation Hardened Programmable Logic Monitoring & Metering
  • GE Multilin™ C30 Substation Hardened Programmable Logic Controller Applications
  • GE Multilin™ C30 Substation Hardened Programmable Logic Controller
  • Honeywell ControlEdge HC900 IO Modules ​Failsafe
  • Honeywell ControlEdge HC900 IO Modules Overview
  • Honeywell ControlEdge HC900 IO Modules
  • Eaton How the ATC-900 evaluates closed or in-phase transitions
  • Eaton ATC-900 Automatic Transfer Switch Controller Load voltage decay operation
  • Eaton ATC-900 Automatic Transfer Switch Controller Closed transition operation
  • Eaton ATC-900 Automatic Transfer Switch Controller Features
  • Eaton ATC-900 Automatic Transfer Switch Controller Glossary of terms and transition types
  • Eaton ATC-900 Automatic Transfer Switch Controller Functions
  • Eaton ATC-900 Automatic Transfer Switch Controller Product overview
  • Eaton ATC-900 Automatic Transfer Switch Controller Background
  • Eaton ATC-900 Automatic Transfer Switch Controller safety precautions
  • Eaton ATC-900 Automatic Transfer Switch Controller
  • ABB values It's in our DNA SAFETY & INTEGRITY
  • ABB Excitation Systems Center of Excellence, North America Certifications
  • ABB's Excitation Systems service team Full range
  • ABB Excitation Systems Center of Excellence, North America
  • ABB A331 E Advant Controller 400 with S800 I/O and MasterPiece 200 Configuration and Operation
  • ABB A331 Advant OCS with Master Software AC400 Configuration und Programming with S100 and S800 I/O
  • TEWS TQMC800 One Channel 1000BASE-T Ethernet
  • TEWS TQMC701 8 Single-Ended / Differential A/D Channels, 4 D/A Channels and 16 Digital I/O Channels
  • TEWS TQMC700 Reconfigurable FPGA with AD/DA & Digital I/O Technical Information
  • TEWS TQMC700 Reconfigurable FPGA with AD/DA & Digital I/O
  • TEWS TQMC600 Reconfigurable FPGA with Digital I/O Technical Information
  • TEWS TQMC600 Reconfigurable FPGA with Digital I/O
  • TEWS TQMC401 4 Channel High Speed Sync/Async Serial Interface Technical Information
  • TEWS TQMC401 4 Channel High Speed Sync/Async Serial Interface
  • TEWS TQMC400 4 Channel Full-Modem RS232/RS422/RS485 Programmable Serial Interface Technical Information
  • TEWS TQMC400 4 Channel Full-Modem RS232/RS422/RS485 Programmable Serial Interface
  • TEWS TPCE210 PCI Express x4, Gen 2, Dual QMC Carrier Technical Information
  • TEWS TPCE210 PCI Express x4, Gen 2, Dual QMC Carrier
  • TEWS TPMC463 4 Channel Serial Interface RS232/RS422 Technical Information
  • TEWS TPMC463 4 Channel Serial Interface RS232/RS422
  • TEWS TPMC462 4 Channel Serial Interface RS232/RS422 Technical Information
  • TEWS TPMC462 4 Channel Serial Interface RS232/RS422
  • TEWS TPMC461 8 Channel Serial Interface RS232/RS422 Technical Information
  • TEWS TPMC461 8 Channel Serial Interface RS232/RS422
  • TEWS TPMC460 16 Channel Serial Interface RS232/RS422 Technical Information
  • TEWS TPMC460 16 Channel Serial Interface RS232/RS422
  • TEWS TPMC395 Conduction Cooled, Four Channel 10/100/1000 Mbit/s Ethernet Technical Information
  • TEWS TPMC395 Conduction Cooled, Four Channel 10/100/1000 Mbit/s Ethernet
  • TEWS TPMC378 Conduction cooled 8 channel isolated RS422 interface Technical Information
  • TEWS TPMC378 Conduction cooled 8 channel isolated RS422 interface
  • Emerson Fisher™ FIELDVUE™ DVC7K-H Digital Valve Controller Value
  • Emerson Fisher™ FIELDVUE™ DVC7K-H Digital Valve Controller Ease of Use
  • Emerson Fisher™ FIELDVUE™ DVC7K-H Digital Valve Controller
  • GE CT/VT Modules with Enhanced Diagnostics Conclusion
  • GE CT/VT Modules with Enhanced Diagnostics INTRODUCTION
  • FB2100 and FB2200 Emerson’s Next Generation Flow Computer
  • Emerson FB2200 Flow Computer Communications
  • Emerson FB2200 Flow Computer Control
  • Emerson FB2200 Flow Computer Expansion I/O
  • Emerson FB2200 Flow Computer Temperature Input (RTD/PRT)
  • Emerson FB2200 Flow Computer Power Security
  • Emerson FB2200 Flow Computer Power Options
  • Emerson FB2200 Flow Computer History
  • Emerson FB2200 Flow Computer Alarms and Events
  • Emerson FB2200 Flow Computer Firmware
  • Emerson FB2200 Flow Computer FBxWifi
  • Emerson FB2200 Flow Computer Key Features
  • Emerson FB2200 Flow Computer
  • TEWS TPMC377 Conduction Cooled PMC, 4 Channel Isolated Technical Information
  • TEWS TPMC377 Conduction Cooled PMC, 4 Channel Isolated RS232/RS422/RS485 Programmable Serial Interface
  • TEWS TPMC376 Conduction Cooled PMC Technical Information
  • TEWS TPMC376 Conduction Cooled PMC, 4 Channel RS232/RS422/RS485 Programmable Serial Interface
  • TEWS TPMC375 Conduction Cooled PMC Technical Information
  • TEWS TPMC375 Conduction Cooled PMC, 8 Channel RS232/RS422/RS485 Programmable Serial Interface
  • TEWS TPMC372 Conduction Cooled PMC, 4 Channel RS232/RS422 Technical Information
  • TEWS TPMC372 Conduction Cooled PMC, 4 Channel RS232/RS422
  • TEWS TPMC371 Conduction Cooled PMC, 8 Channel RS232/RS422 Technical Information
  • TEWS TPMC371 Conduction Cooled PMC, 8 Channel RS232/RS422
  • TEWS TPMC363 Conduction Cooled PMC 4 Channel High Speed Synch/Asynch Serial Interface Technical Information
  • TEWS TPMC363 Conduction Cooled PMC 4 Channel High Speed Synch/Asynch Serial Interface
  • TEWS TPMC321 Conduction Cooled, 64 Digital TTL I/O / 32 Differential I/O
  • TEWS TPMC310 Conduction Cooled PMC , Isolated 2 x CAN Bus
  • TEWS TPMC160 Automotive Sensor Simulator
  • TEWS TPMC151 4 Channel Resolver or LVDT/RVDT-to-Digital Converter ​Technical Information
  • TEWS TPMC151 4 Channel Resolver or LVDT/RVDT-to-Digital Converter
  • TEWS TPMC117 6 Channel SSI, Incremental Encoder, Counter Technical Information
  • TEWS TPMC117 6 Channel SSI, Incremental Encoder, Counter
  • TEWS TPMC317 Conduction Cooled, 6 Channel SSI, Incremental Encoder, Counter Technical Information
  • TEWS TPMC317 Conduction Cooled, 6 Channel SSI, Incremental Encoder, Counter
  • TEWS TPMC917 4MB SRAM with Battery Backup and 4 Channel RS232 Technical Information
  • TEWS TPMC917 4MB SRAM with Battery Backup and 4 Channel RS232
  • Emerson MVME3100 Series VMEbus Single-Board Computer Backward Compatibility
  • Emerson MVME3100 Series VMEbus Single-Board Computer Overview
  • Emerson MVME3100 Series VMEbus Single-Board Computer
  • Emerson MVME5500 Series VMEbus Single-Board Computer Software Support
  • Emerson MVME5500 Series VMEbus Single-Board Computer IPMC ModulES
  • Emerson MVME5500 Series VMEbus Single-Board Computer
  • Emerson S-Series DeltaV™ Controller Interface for PROVOX™ I/O System Compatibility
  • Emerson S-Series DeltaV™ Controller Interface for PROVOX™ I/O Product Description
  • Emerson S-Series DeltaV™ Controller Interface for PROVOX™ I/O Benefits
  • Emerson S-Series DeltaV™ Controller Interface for PROVOX™ I/O Introduction
  • Emerson S-series Serial Interface Other Protocols Supported
  • Emerson S-series Serial Interface Redundancy Made Easy
  • Emerson S-series Serial Interface Product Description
  • Emerson S-series Serial Interface Introduction
  • TU811V1 ABB Ability™ System 800xA® hardware selector
  • TU805K01 ABB Ability™ System 800xA® hardware selector
  • ABB Excitation Care offers different levels of service
  • ABB Excitation Care Optimizing the performance of your system
How to install and debug this product? Matters needing attention
Where can I download the manual and programming software?
Is it in stock or need to be ordered?
Can you provide technical service?
Where can I order this series?
Do you have product selection list and pre-sale service?
