CTI 2530 8-Point Form-C Relay Output Module

Description

The 2530 8-Point Relay Contact Module provides eight isolated "Form C" relay outputs

for the CTI 2500 Series® or Simatic® 505 I/O base. The 2530 is designed for high

current applications such as switching motor starters.

The 2530 is also designed for 125 VDC (nominal) low level current applications.

This module is especially suited for applications in power utility stations.

Features

• 8 individually isolated “Form C” relay outputs

• Up to 4 amps per output

• 1500V channel-to-PLC backplane isolation

• Switches 125 VDC (ideal for power utility substation applications)

• Single-wide module

• CTI 2500 Series® base format

Specifications

Outputs per module: 8

Isolation: 1500 VDC channel-to-backplane

1500 VDC channel-to-channel

Load voltage: 15 - 240 VAC

15 - 150 VDC

Indicators: 8 individual LEDs

Maximum output current:

15VAC - 240VAC: 4A

15VDC - 30VDC: 4A

150VDC:

Resistive: 1mA - 500mA Inductive: 1mA - 250mA

Switching rate: 5 ops/sec (no load)

Type of contact: Form C

Type of outputs: Individually fused

Contact life:

@ full rated current, 4A = 200.000 cycles @ 2A = 1.000.000 cycles

Backplane Power: 1.0 Watt

User Power Supply: 24VDC +10% 160 mA (all outputs ON) Fuse F9 for the user

supplied 24VDC, 1 amp, 250V Fast-Blow 5x20mm: MFG: Littelfuse P/N: 0217001.

HXP ,field replaceable

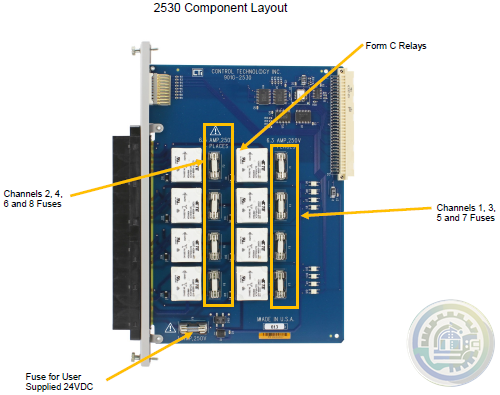

Channel Fuses: F1 thru F8. 5 amp, 250V Slow-Blow 5x20mm :MFG: Littelfuse P/N

215005. field replaceable. DO NOT REPLACE UNDER POWER.

Connector: Removable (New installations require a 2500-40F wiring connector)

Wire Gauge: 14 - 22 AWG

Module Size: Single wide

Shipping Weight: 1.8 lb. (0.82 Kg)

Additional Product Information:

On CTI’s Website you will find links to the 2500 Series Std Environmental Specifications

and the UL Agency Certificates of Compliance .
