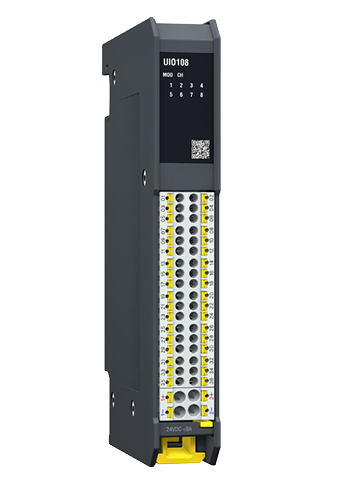

Bachmann UIO108 Universal Input/Output Module

The cost and performance optimized design of complex

automation solutions involves a large number of different

sensor and actuator types. The standard 10 V and 4 mA

to 20 mA interfaces are often not sufficient to achieve

demanding objectives.

With the UIO108. a single module type covers all common

analog and digital signals for inputs and outputs that can

be configured individually for each channel. The extensive

versatility of the module is rounded off by a wide range

of additional functions such as counters, encoders, pulse

width modulation and the control of a stepper motor

driver. This simplifies the entire process from the quotation

phase through planning, programming and commissioning,

right up to stockkeeping and servicing. Besides the 8 freely

configurable primary channels, up to 8 additional I/O chan

nels with restricted signal types are available.

Features

● 8-channel analog/digital input/output module

● Up to 8 additional channels depending on the required

signal type

● Configurable by channel: signal type and direction

● DI / counter / encoder

● DO / PWM

● AI current/voltage, Pt100. Pt1000. thermocouples (J, K, T,

N, E, R, S, B)

● AO current/voltage

● Control of a stepper motor driver

● Synchronous clocks / latch / sync out

● Oversampling

● Direct module-to-module communication
