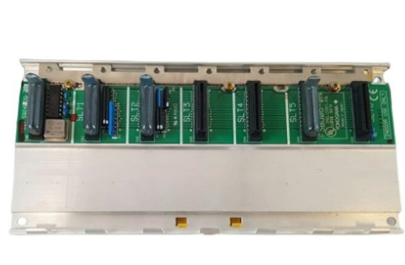

YOKOGAWA F3BU06-0N Base Module

GENERAL

This document describes the system configurations,

development/maintenance, software configurations,

and network specifications for the FCN autonomous

controllers with NFCP501/NFCP502 CPU module in

the STARDOM. (FCN is an acronym for field control

node.)

Notation in this document:

• The term “FCN” refers to the module consisting type

autonomous controllers.

• The term “FCN-500” refers to the autonomous

controllers with NFCP501/NFCP502 CPU module.

• The term “FCN-100” refers to the autonomous

controllers with NFCP100 CPU module.

• The term “FCN-RTU” refers to the low power

autonomous controllers with NFCP050 CPU module.

• The term “FCJ” refers to the all-in-one type

autonomous controllers.

FCN-500 is a controller consisting of CPU, I/O, and

other modules as necessary. It supports a variety of I/O

modules with excellent scalability. And, highly reliable

system can be configured with duplex power supply

modules, CPUs, control network system.

For hardware details, refer to FCN Autonomous

Controller Hardware (FCN-500), GS 34P02Q14-01E.

 FEATURES

l High Performance

• Applicable to a variety of processes, from sequence

control processes to analog control processes.

• Intercommunication with other autonomous

controllers or other equipment for inter-linked control

actions, in addition to stand-alone operation.

• Using Versatile Data Server Software (VDS) or

SCADA Software (FAST/TOOLS) together allows

a system with enriched operation and monitoring

functions to be built up.

• An FCN/FCJ OPC server for Windows can be used

for accessing the data of an FCN/FCJ from an OPC

(OLE for Process Control) client on a PC.

• Duolet application is Java language application and

enables users to implement the following functions

on FCN-500; displaying images on a Web browser,

saving data files, transferring files using the FTP

protocol, sending/receiving e-mails and public

network connection using the PPP protocol.
