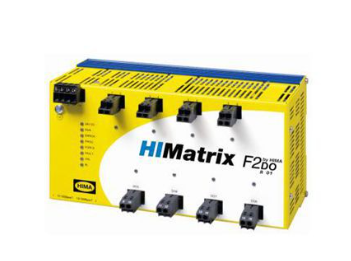

HIMA F2 D0 8 01 Remote l/Os HIMatrix systems

The HIJunctionBox expands the HIMA Smart Safety Platform to the field.

This means that you require significantly fewer marshalling cabinets, cable trays,

and master cables. A decentralized HIJunctionBox in the field reduces cabling efforts,

initial investment, and operating costs. Thanks to the robust design, you can also

use the system in harsh environments.

Technical Details

Housing material: 316L stainless steel, 2mm wall thicknes

Dimensions (h/w/d): 1200x800x400mm

Protection rating: IP 66/NEMA 4X in accordance with IEC 60 529

Weight:  120–150kg (depending on equipment, not including pack aging)

Lock: Lockable with key

Mounting type:  Wall mounting

Explosion protection:  Suitable for zone 2

Cable entry systems:  2 entries for power supply, 2 entries for communication connection,

up to 96 entries for I/O cables, via a multi- cable transit system

Power supply:  100–240 VAC or 110–250 VDC

Communication:  Fiber-optic, single-mode, or copper-cable CAT 6. Ethernet 1000 BaseT

Safety Function

The remote I/O is equipped with safety-related digital inputs and outputs. The input values

on the inputs are safely transmitted to the connected controller via safeethernet. The

outputs are safely assigned their values by the connected controller via safeethernet.

Safety-Related Digital Inputs

The remote I/O is equipped with 20 digital inputs. The state (HIGH, LOW) of each input is

signaled by an individual LED.

Mechanical contacts without own power supply or signal power source can be connected to

the inputs. Potential-free mechanical contacts without own power supply are fed via an

internal short-circuit-proof 24 V power source (LS+). Each of them supply a group of 4

mechanical contacts. Figure 1 shows how the connection is performed.
