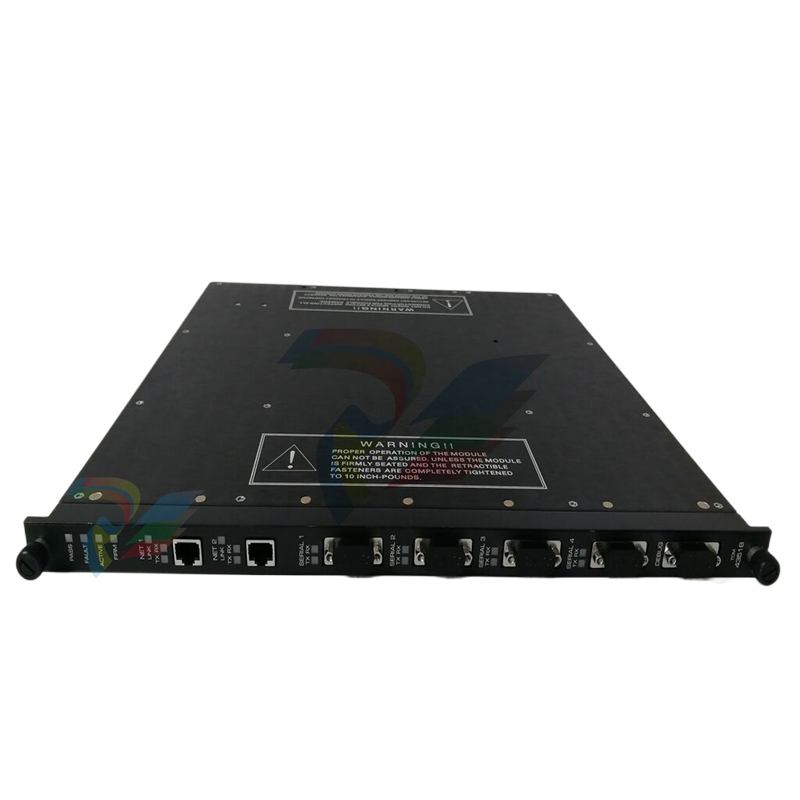

TRICONEX 4508 digital output module

Flexibility

• I/O deployment enables centralized and distributed application

• Modifications can be made without stopping operations

Performance

• Built-in high integrity and fault tolerance

• Built-in diagnostics and redundancy management — transparent to the user

• Maintains SIL3 even under fault conditions

• High-capacity handling — in excess of 750,000 TMR I/O channels

• Fast scan times (from 20 milliseconds)

• Up to 60,000 SOEs stored per controller

• Advanced input/output monitoring and control capabilities

• 1mSec SOE time stamped at the I/O module

• Direct HART integration and pass through to asset management systems

• Universal I/O modules with per point configuration

Tricon CX provides continuous operation, superior plant uptime and high productivity in a compact unit.

Tricon CX furnishes a lifetime of flexibility without compromising on safety.

Its simple mechanical design, flexible architecture and advanced capabilities ensure that as your needs change and expand,

your protection can grow with you. Designed and engineered for superior ease of use,

Tricon CX is quick and easy to engineer, install, configure, operate and maintain — reducing overall expenditures for capital and operations.

The Triconex product family includes a comprehensive range of modules.

This section includes: a summary of the system components and their uses,

a table that lists standard products and their model numbers, and a summary of specifications for each standard product in the Tricon family

See the Tricon Planning and Installation Guide for complete information. Summary of Tricon Components Chassis

• Main Chassis—houses Main Processors, memory back-up batteries, communication modules and I/O modules.

• Expansion Chassis—for additional I/O modules up to 100 feet (30 meters) away from the Main Chassis.

In restricted applications, operation up to 1.000 feet (300 meters) is supported.

• RXM Chassis—for I/O modules up to 7.5 miles (12 kilometers) away from the Main Chassis.

• Mechanical Keying—Each slot in the Tricon is mechanically keyed to correspond with a specific type of module.

This prevents the installation of modules into improper slots.

Power Supply Modules

• Provide logic power to modules in the Main, Expansion or RXM Chassis. Available in 24 VDC, 115 VAC and 230 VAC versions.

The power rating of each power supply is 175 watts at 140 ° F (60° C).

Communications and integration

• Up to 254 nodes peer-to-peer communications

• Universal connectivity with all major distributed control systems(DCSs), process automation systems, SCADA and HMI

• Direct integration with EcoStruxure Foxboro DCS
