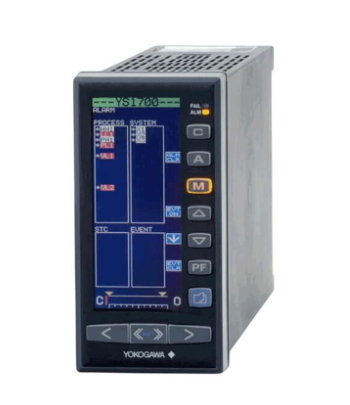

YOKOGAWA YS1700-100/A06/A31 Programmable indicating controller

 GENERAL

This GS covers the hardware specifications of the Terminal Block that can

be used for Modules with Built-In Barrier (FIO) of CENTUM VP.

When installing these apparatuses with intrinsically safe circuit, “Explosion

Protection” (TI 33Q01J30-01E) and “Explosion Protection of FIO Products”

(IM 33Y06K01-90E) for CENELEC Approval should be referenced together

with this GS.

These terminal blocks are compliant with ISA S71.04 class G3.

The temperature range of the module is -20 to 70 °C.

 STANDARD SPECIFICATIONS

Variation of Connection

Terminal blocks are used to connect I/O modules with built-in barriers to

field devices. The pressure clamp terminal

block is available for I/O modules with Built-In Barrier.

ATSA3S Pressure Clamp Terminal Block for Analog Input (8-channel)

ATSS3S Pressure Clamp Terminal Block for Analog Output (8-channel)

ATST4S Pressure Clamp Terminal Block for TC/mV (16-channel)

ATSR3S Pressure Clamp Terminal Block for RTD/POT (8-channel)

ATSB4S Pressure Clamp Terminal Block for Digital Input (16-channel)

ATSD3S Pressure Clamp Terminal Block for Digital Output (8-channel)

ATSA3D Dual-Redundant Pressure Clamp Terminal Block for Analog Input (8-channel)

ATSS3D Dual-Redundant Pressure Clamp Terminal Block for Analog Output (8-channel)

ATST4D Dual-Redundant Pressure Clamp Terminal Block for TC/mV (16-channel)

ATSR3D Dual-Redundant Pressure Clamp Terminal Block for RTD/POT (8-channel)

ATSB4D Dual-Redundant Pressure Clamp Terminal Block for Digital Input (16-channel)

ATSD3D Dual-Redundant Pressure Clamp Terminal Block for Digital Output (8-channel)

Wide level range: +20dBm to -90dBm

The AQ6370C can measure high power sources such as optical

amplifi ers and pump lasers for Raman amplifi ers, and very weak

optical signals as well. Measurement sensitivity can be chosen from

seven categories according to test applications and measurement

speed requirements.

The high performance model can also achieve a higher dynamic

range within 0.2nm of the peak wavelength. With the sharper

spectral characteristics of the monochromator, spectral signals in

close proximity can be separated clearly and measured accurately.
