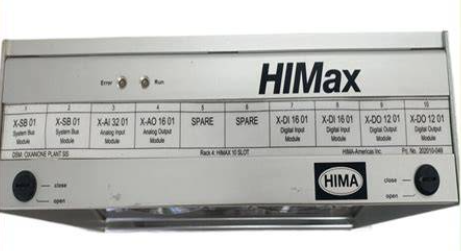

HIMA X-DI 32 01 32 channels 24 VDC SlL 3 Digital input module



Extensions, Upgrades, and Modernization

Systems, technology, and standards change continuously. To ensure the long-term safety and

availability of your plants, our experts will assist you to keep them up to date during operation.

As part of our modernization services, our experts support you with on-site analysis and advise

you on all options and technologies to keep your plant up to date. This includes consulting on

system upgrades, maintaining your equipment, and updating to compatible successor models.

Our modernization services include upgrade planning, logic conversion from ELOP II to SILworX,

and installing your systems in accordance with the latest safety standards.

HIMax adapts to all I/O-count, response-time and fault-tolerance requirements as well

as centralized and distributed applications. HIMax delivers availability for life by enabling

uninterrupted system operation throughout your plant’s life cycle. Hardware and software

changes can be performed without system interruption. Alternative CPU modules make

HIMax suitable for meeting high performance and critical control requirements as well

as for use in small and mid-sized safety applications.

Highlights

• XMR architecture and integrated redundancy management deliver “availability for life”

• Unique common-cause protection

• All changes, additions and maintenance procedures are possible without stopping

a HIMax system

• CPU self-educates when processor module is replaced

• Proof tests can be conducted online

• Stores up to 2.500 diagnostic entries in the processor module and 500 entries per

I/O module automatically

• Multitasking – run up to 32 user programs simultaneously

• Sequence of event (SOE), storage for 5.000 events, 1 ms resolution quality

• Redundant integrated and protected power distribution

• Two or three wiring inputs/outputs per channel to help eliminate additional wiring

• Remote rack functionality enables star topology

• HIMax – HIMatrix PES, redundant link via SafeEthernet

• Optimize process simulation and operator training with the HIMax Safety Simulator X-OTS
