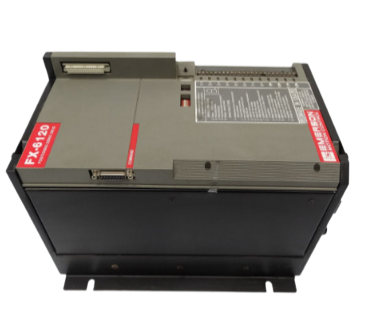

EMERSON FX-6120 Positioning Servo Drive

The enclosure is rated for NAMA 4/12 and IP65/IP55. Dimensions of the enclosure are shown

in Figure 5. Mounting dimensions are shown in Figure 6. The enclosure may be bulkhead

mounted using the internal mounting holes. External mounting brackets may be used if

desired. When mounting using the internal mounting holes, caution must be used to ensure

the holes are sealed to maintain the NEMA/IP rating. The enclosure is supplied with five 1/2 in.

compression type cable entry hubs. These may be fitted with conduit type fittings if desired.

If the system includes backup LCD keypad terminal, some planning is required to allow for

proper height above the floor to view the display and properly operate the keypad.

LSN Hardware Includes:

• NextGen DeltaV SIS Smart Switches

• Ethernet Isolation Ports on the SZ Controller

•  SNPs on the CSLS carrier

•  LSNB to communicate with other LSNs through a GSN.

A redundant CSLS communicates over the LSN with up to

15 other CSLSs, 1 SZ controller, and 1 LSNB allowing great

flexibility and ease of system expansion.

Only DeltaV SIS Smart Switches are supported on the LSN.

The LSN is certified according to the concept of black channel

per IEC61508-2. Therefore, the LSN hardware components

are considered as an interference free hardware component of the SIS.

Safety network ports (SNP) on the CSLS are available for

copper only. DeltaV SIS Smart Switches can be connected

using fiberoptic cables.

Because fiberoptic cables do not conduct electricity,

they should be used in connections between buildings

or in plant areas where electromagnetic interference is present.

Fiberoptic cabling must be used where cable runs are longer

than 100 meters (328 ft.).

The Emerson Motion Control FX Series Brushless Positioning Servo Drive Systems

are designed to provide trouble-free solutions for a wide variety of industrial automation applications.

Each FX Positioning Servo Drive System integrates the position control, I/O, feedback,

servo amplifier and power supply in one housing.The drive design allows the unit to operate

on a wide range of voltage sources without needing expensive isolation transformers.

Models in the FX Drive Series provide up to 1000 lb-in of continuous torque.

FX Amplifiers providing 8 to 120 lb-in continuous torque are UL Listed, Canadian UL Listed and CE Certified.

These amplifiers are also designed to meet IEC801 specifications for noise immunity.
