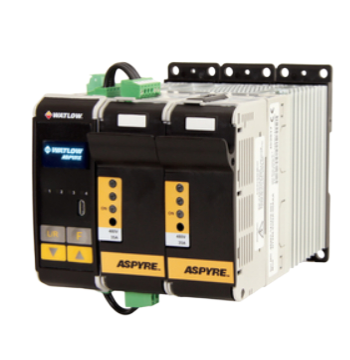

Watlow ASPYRE SCR Power Controller DT2480601A00AAA - Thermal Devices

Watlow’s F4T with INTUITION® Combines the Flexibility of a

Modular I/O Controller with Best-in-Class Ease of Use

The F4T with INTUITION® temperature process controller

from Watlow® offers a wide range of field removable I/O

modules for maximum design flexibility. Configurations

can be custom tailored to meet the scaling needs of

a tremendous range of equipment and applications

while providing exactly the hardware types required for

compatibility. The F4T controller also features a 4.3 inch,

color, graphical touch panel. Combining power, flexibility and

functionality, this new controller offers unmatched versatility,

and its best-in-class ease of use could very well make user

manuals a thing of the past.

Features and Benefits

4.3-inch, color touch panel with high-resolution, graphical

user-interface

• Shortens learning curve and reduces operator errors

• Allows channels, profiles, alarms, inputs and outputs to be

personalized with user defined names

Temperature PID, data logger, trend chart,

over/under-temperature limit, power switching,

math, logic, timers and counters combined into an

integrated system

• Lowers ownership costs

• Eliminates the need for separate discrete components

• Reduces complexity

• Simplifies design, ordering and installation

• Saves money

Robust algorithms for temperature, cascade, altitude,

humidity and compressor

• Improves process control

• Offers one to four channels of control

• Provides multiple PID sets

• Enables TRU-TUNE®+ adaptive control algorithm

• Offers 40 ramp and soak profiles with real-time clock and

battery backup

COMPOSER® graphical configuration PC software

• Speeds up and simplifies commissioning

• Archives and documents controller setup

• Connects with controller easily via Ethernet

Watlow 0601-0001-0000 Controller support tools (DVD)

Watlow 0830-0808-0001 (CAPUSB-MB5) Rubber plug USB mini

Watlow 0830-0808-0002 (CAPUSB-A) Rubber plug USB host

Watlow 0830-0858-0000 Replacement battery

Watlow 0822-0769-0000 Module slot plug (for vacant F4T slots without flex modules

Watlow 0216-1285-0000 Flush mount - mounting adapter plate

Watlow 0847-0400-0000 USB 2.0 to RJ45 Ethernet adapter

Watlow 0238-1245-ALUM Accent bar (brushed aluminum gray)

Watlow 0238-1245-REDD Accent bar (brushed aluminum red)

Watlow 0238-1245-BLUE Accent bar (brushed aluminum blue)

Watlow 16-0246 Current transformer

Watlow 0804-0147-0000 RC supression - Quencharc®
